Gigabyte SINXP1394 SiS655 Dual Channel DDR Mainboard Gallery (2)
Overclocker 16 Jan 2002

The Mainboard

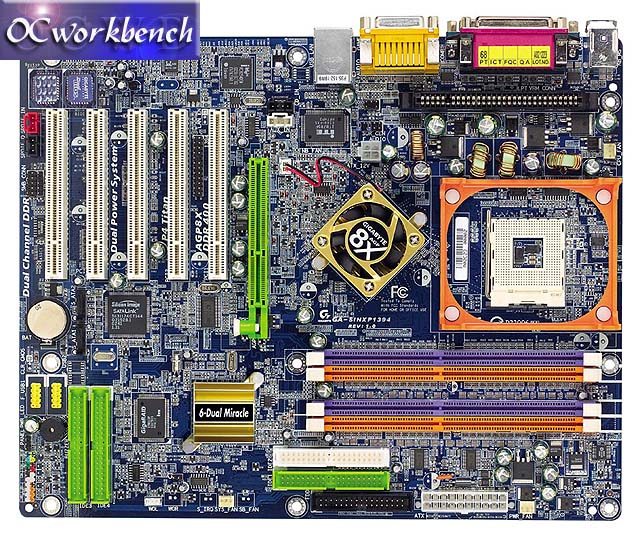

Gigabyte seems to have fall in love with colours. If you noticed, Gigabyte is probably the first to use bright orange for the P4 retention unit. AGP slot is coded in green, ATA133 RAID IDE ports in Green. The DIMMs are coded in Orange and Purple. To operate in Dual Channel DDR, insert two DIMMs separately on the two banks.

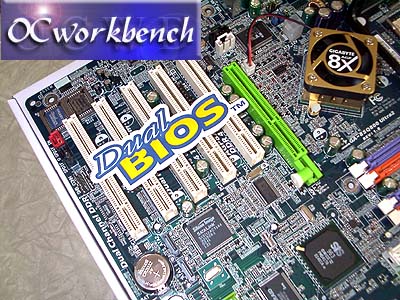

5 PCI, 1 AGP slot. ON the left hand side of the photo, you would see the Dual BIOS on the left. Realtek ALC650 5.1 audio chipset is used on this board.

The picture below shows the position of the DPS slot where you can plug in the DPS unit.

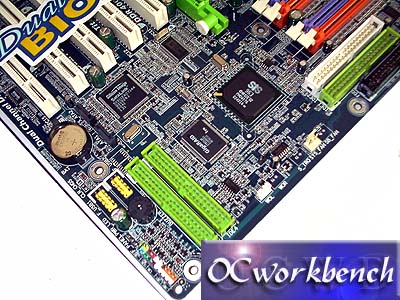

Dual RAID function supported by both the SiliconImage chipset (SATA RAID) and the GigaRAID chipset by ITE (IDE RAID). There is also Dual BIOS. The front panel connectors are colour coded for easy installation of front panel connectors.

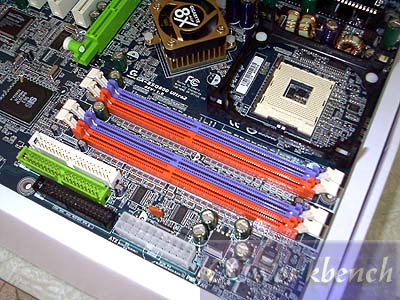

The P4 Socket 478, Dual IDE channels, Power connector. DIMM slots
