Gigabyte K8VNXP VIA K8T800 Mainboard Gallery (3)
Overclocker 21 Sept 2003

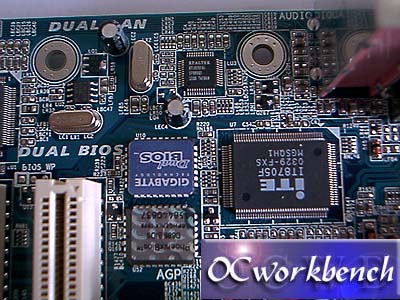

ALC 658 audio chip and Realtek LAN chip (1st LAN) - Gigabit Ethernet	Dual BIOS. Realtek 10/100Mbps LAN chip (2nd LAN) and ITe I/O controller chip

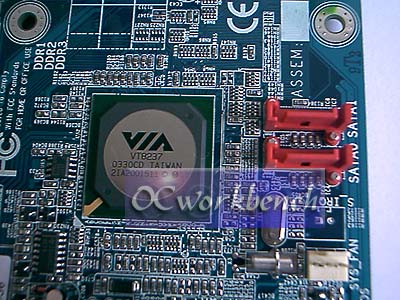

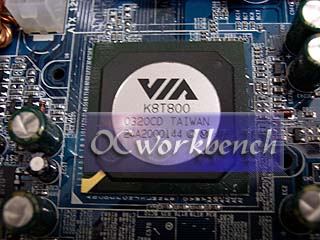

2 SATA ports supported by VIA South Bridge VT8237. Supports RAID 0 and RAID 1.	VIA K8T800 chipset

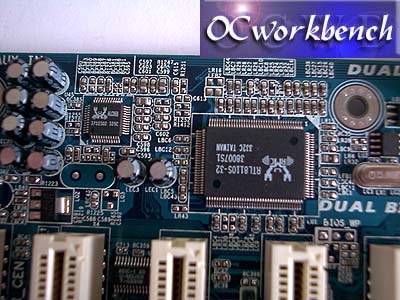

ITe GigaRAID controller supports 2 channels of IDE RAID 0,1, JBOD and RAID 0+1.	Realtek RTL 8110S-32 providing Gigabit Ethernet LAN for the Dual LAN functionality on the board. The other chip RTL8201 provides 10/100Mbps Ethernet.

Texas Instrument 1394B controller chip
