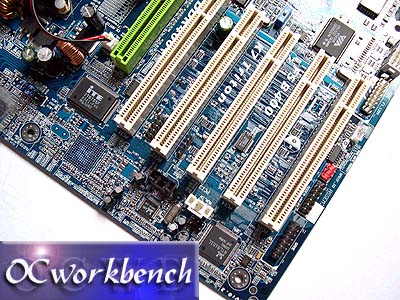

5 PCI slots and 1 AGP 8x slot. 10/100Mbps
Ethernet using Realtek chipset. ITe I/O controller chip ITE I/O IT8705F. Realtek ALC655 CODEC for 6 ch audio.
|

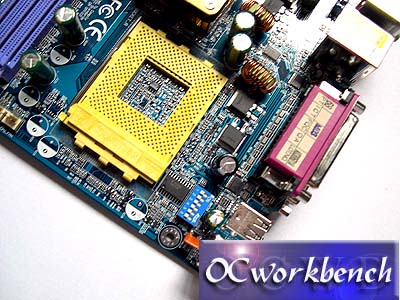

The Socket 462 with good clearance for most
heatsinks. There are no mounting holes around it for certain heatsinks.
The Dip switch is for adjustment the CPU multiplier. |
 |
 |
|

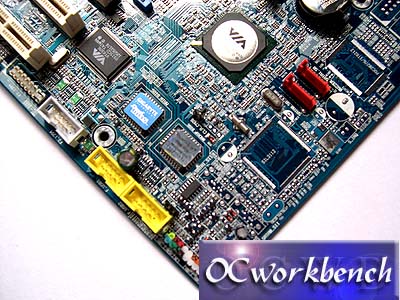

On the side of the board are connectors for
1394 ports, USB brackets. The two Red SATA ports are supported by the VIA
8237 chipset. Dual BIOS and colour coded front panel connectors. |

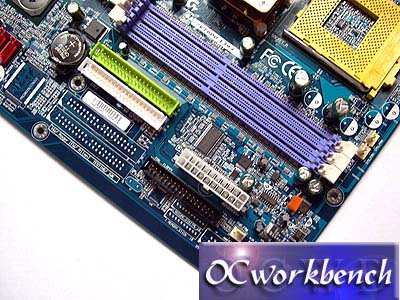

Type : DDR400(PC3200)/ DDR333 (PC2700) /
DDR266 (PC2100) -184pin , Max capacity : 3GB , DIMM slots: 3
|
 |
 |
|

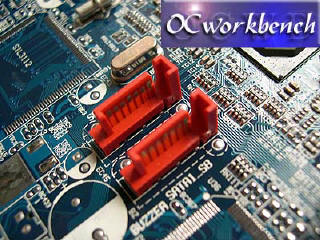

Provided by the south-bridge VT8237,
GA-7VT600 1394 delivers the brand new Serial ATA interface with the RAID
function to the platform. The Serial ATA interface is the new generation
storage interface with scalable performance for desktop platform. With up
to 150MB/s data transfer rate, Serial ATA is faster than current Parallel
ATA and delivers superior input/output performance. The function of RAID
0(Striping) and RAID 1(Mirroring) is also furnished in the Serial ATA
interface to further enhance the storage performance and data protection
of this platform. |

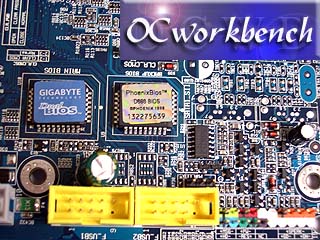

Dual BIOS, USB socket for external brackets and colour
coded front panel connectors. |
 |
 |
|

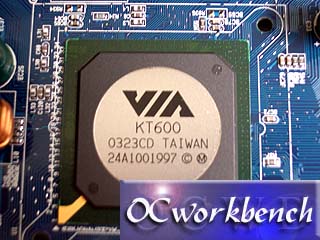

VIA KT600 North Bridge |

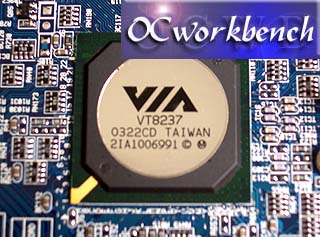

VIA VT8237 South Bridge |
 |
 |
|

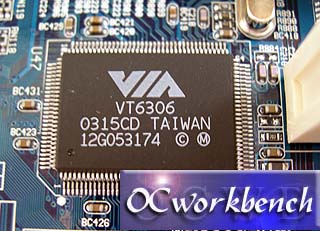

VIA VT6306 IEEE 1394 controller chip.
The
multimedia-oriented high-bandwidth IEEE1394 interface will enhance PC
connectivity with consumer electronics audio/video (A/V) appliances, and
storage peripherals. Users can upload video faster from their camcorders
and other devices, plus backup data more efficiently. |

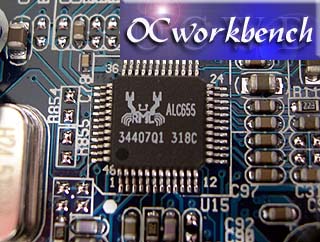

Users can experience the 3D
surround sound through integrated 6-channel audio. It fulfills the
requirements for a variety of audio applications, such as MP3 or Audio CD
playback, DVD movies and gaming.
With Jack-Sensing feature, this platform can reveal necessary information
during the installation of audio devices to the user thus achieving real
user-friendly interface. |
