EPoX 4PCA3+ i875 Canterwood Gallery (2)

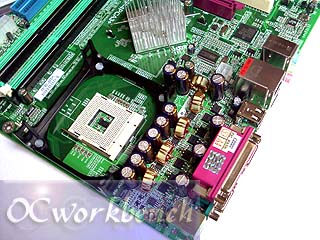

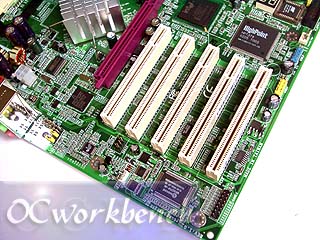

5 PCI slots and 1 AGP slot. Gigabit Ethernet using BroadCom chipset. CMI9739 6 ch audio CODEC on board.	The Socket 478, 4 phase voltage design is implemented on board

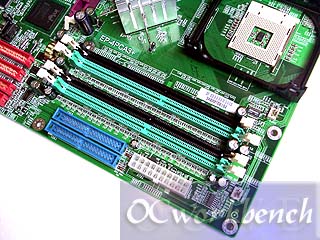

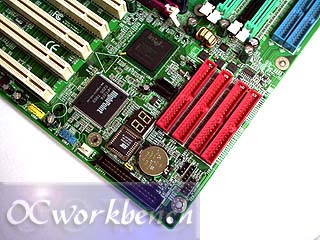

2 ports for SATA RAID 0 (ICH5R), 2 IDE channels. IDE RAID 0,1+0, 1, 5 supported by Highpoint 374 chipset.	4 channels supporting up to 4GB of DDR400. To take advantage of Dual Channel DDR, equivalent RAM of same size must be on each bank.

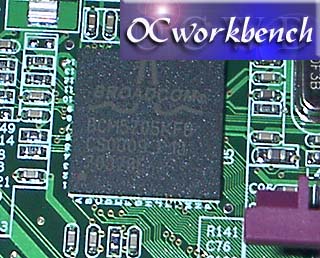

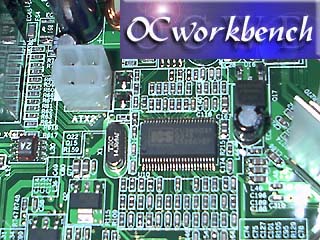

BroadCom Gigabit Ethernet controller chip	ICS 952607EF clk gen is used on this board.

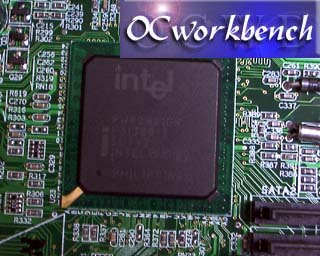

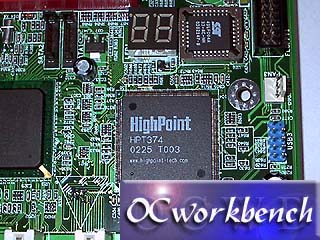

The Intel South Bridge ICH5R which supports SATA RAID 0	The Highpoint HPT374 RAID controller chipset supporting IDE RAID 0, 1, 1+0, 5.
