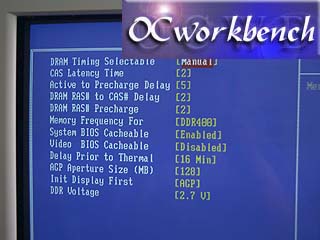

In the Advanced Chipset
Setup, we set the pair of DDR400 to run at CAS 2, 5-2-2 with a DDR voltage
of 2.7v.

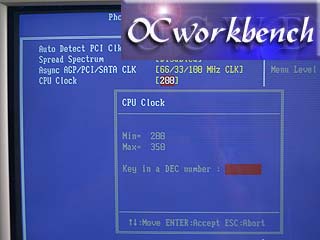

CPU Clock can be set from
200 ~ 350 at 1MHz stepping

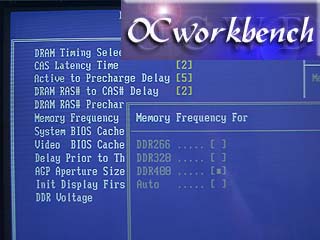

DRAM Ratio
means whether you want to run the memory async to the CPU FSB. As we are
using P4 3.0 which is a 800MHz (200MHz FSB) CPU, we set it to DDR400 so that
we run it in SYNC mode.

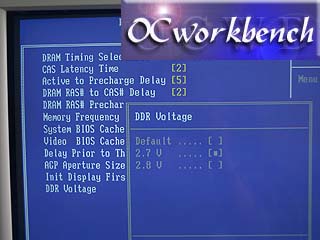

DDR Voltage
can be set for Default, 2.7V,2.8V

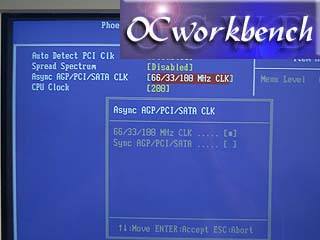

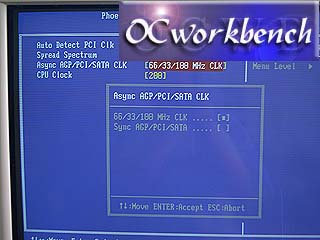

AGP/PCI/SATA can be fixed at 66/33/100 or set
to run sync based on FSB at a ratio.
