Please take note that there is no IAA available for this new chipset and the current IAA downloaded from Intel site can't be installed for Springdale boards. We have received news that a IAA is being planned for it for IDE. The current edition of IAA is meant for SATA RAID.

Before you read the graphs, we have to explain the colour codes.

White : nForce2 chipset, AXP3000+, CAS2, 5-2-2 (AMD platform)
Blue : Intel 865PE chipset, P4 3.0C, CAS2, 5-2-2 (Intel platform)
Red : Intel 875P chipset, P4 3.0C, CAS2, 5-2-2 (Intel platform)
Green: Intel 845PE chipset, P4 3.0C, CAS2, 5-2-2 (Intel platform)
Yellow : SiS 648FX chipset, P4 3.0C, CAS 2, 5-2-2 (Intel platform)

The PF1 scores a high of 45.8 which is the average among all the canterwood and springdale boards.

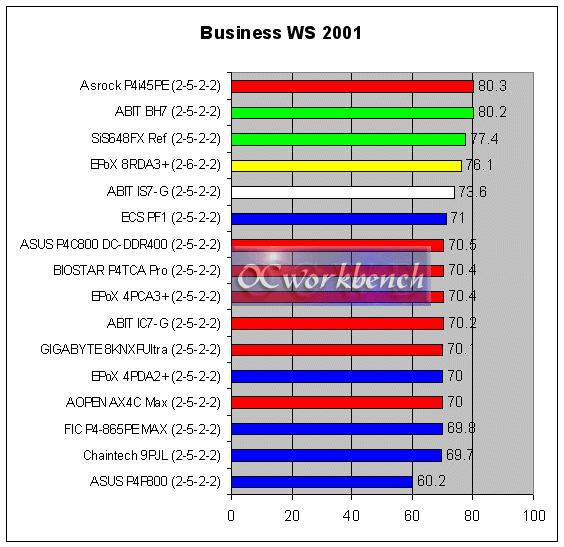

On Business Winstone 2001, it seems that IAA on the ASrock P4i45PE speeds things up. All Springdale/Canterwood boards performs at around 70 marks which is 10 marks slower on the average. Hopefully a new IAA for Canterwood IDE will boost the performance upwards. The IS7-G seems to have a high score than most Canterwood and Springdale scoring 73.6. This is real cool! It is also surprising that the SiS 648FX ref board performs even better than most Canterwood and Springdale.
