ASUS P4SDX SiS 655 Dual Channel DDR Mainboard Gallery (3)
Overclocker 10 Feb 2003

The BIOS (1005.1)

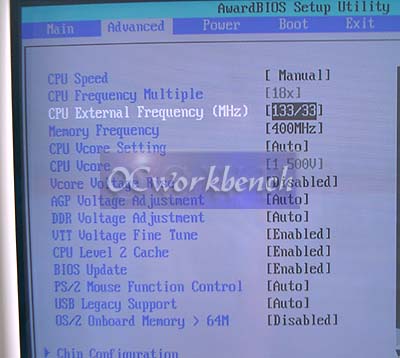

FSB : 100 ~ 166 at 1Mhz stepping

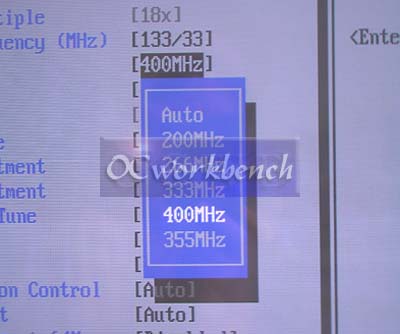

Memory Frequency can be set to run at Async timings to the CPU Freq. You can run in sync/async DDR200,266,333,400 or 355Mhz

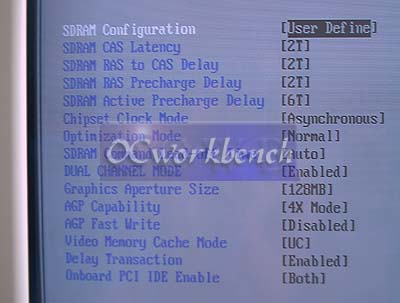

In our tests, we use 2 sticks of Kingston DDR400 (Winbond -5ns). We tested the board using other modules e.g. Crucial XMS3500C2, and we are only able to set it to CAS 2, 2-2-6. 2-2-5 is unstable and sometimes it couldn't even POST.

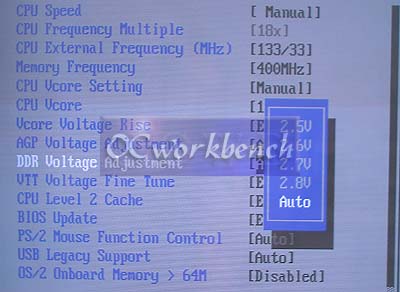

DDR voltage : Auto, 2.5v ~ 2.8v at 0.1v intervals.

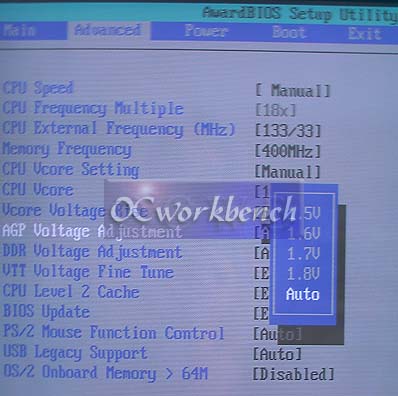

AGP Voltage : Auto, 1.5V ~ 1.8V at 0.1V intervals

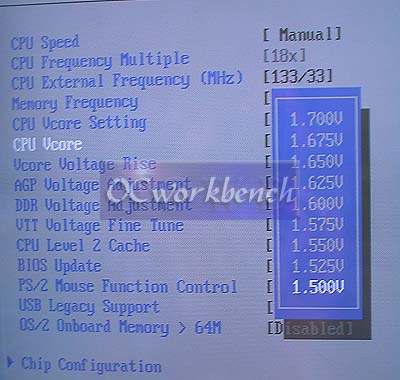

CPU Vcore is adjustable from 1.500v to 1.700v at 0.025v intevals.
