ASUS P4SDX SiS 655 Dual Channel DDR Mainboard Gallery (1)
Overclocker 10 Feb
2003

The mainboard

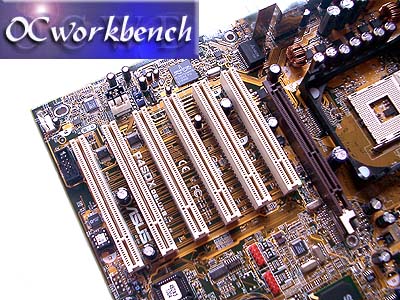

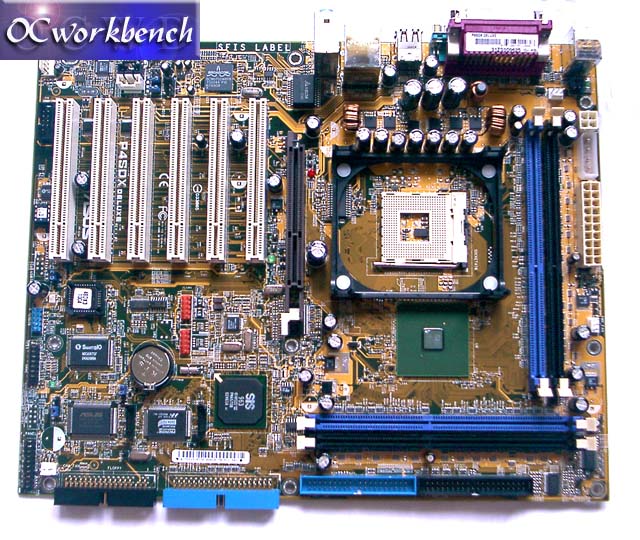

6 PCI, 1 AGP 8x slot. Broadcom Gigahertz Ethernet chipset. COM2 connector on board on the left rear of the board. Audio codec used is ADI 1980 6 channel. The 2 red pins are the IEEE 1394 connectors.

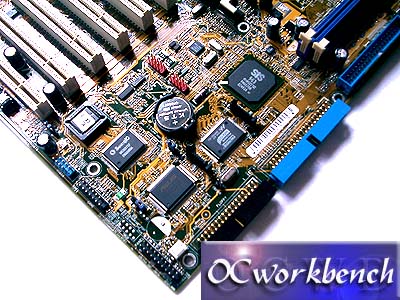

Two horizontally mounted connectors, the blank colour connector is the floppy connector, the blue is the single channel RAID 0/1 IDE connector

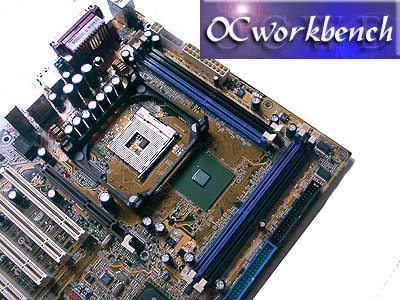

The P4 Socket 478 and the north bridge SiS 655 (Heatsink is removed for photo taking only). The two banks are aligned 90 degrees perpendicular to each other. To utilise Dual Channel DDR, the channels on both banks must have a corresponding equivalent memory capacity RAM. e.g. on both blue slots or on both black slots.

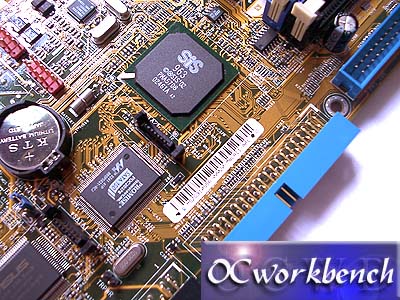

The Serial ATA chipset by Promise supports a single channel IDE ATA RAID 0/1 and 2 x SATA RAID ports
