ASROCK K7S8X SiS
746FX Mainboard Gallery (5)
The BIOS Screen shots
(Version 1.25)

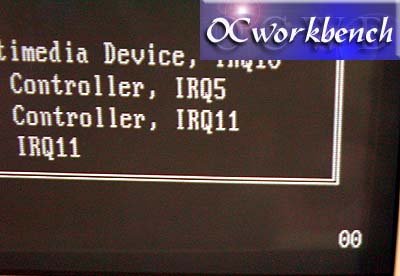

During the POST of the system the POST code is shown on the bottom right hand
corner of the screen

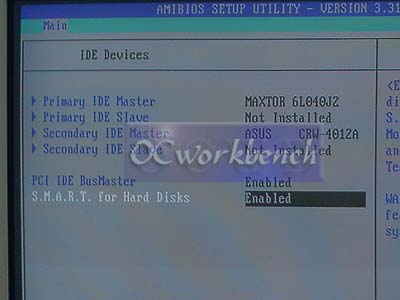

PCI IDE BusMastering can be enabled over here

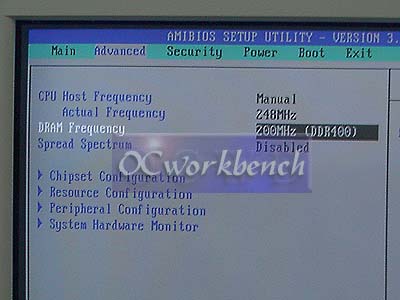

FSB : 100 ~ 248Mhz at 1Mhz stepping.
DRAM Frequencies of AUTO, 133, 166 and 200 (sync/async) can be chosen from the
menu above.

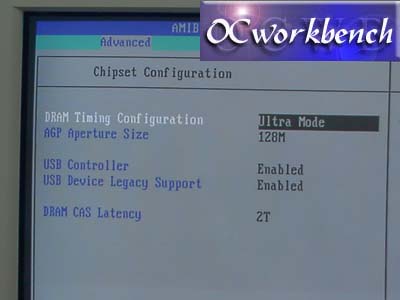

Detail ram timings are not selectable but DRAM Timing Configuration can be set
as Safe, Normal, Fast, Turbo and Ultra. AGP Aperture size is set to 128M
(Default is 64M). DRAM CAS Latency can be set to 2,2.5 or 3. In our tests, we
noticed that some bugs which we will describe more in the actual review.

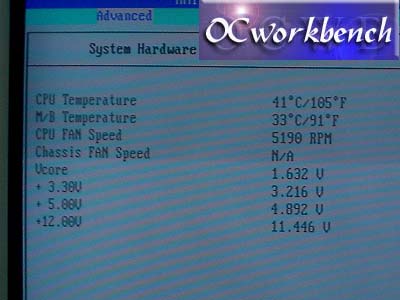

Under System Hardware Monitor, we noticed that the voltage levels are abit on
the low side when we used a ChannelWell 375W PSU on it. |
