ABIT NF7-S v1.2 nForce Mainboard Gallery (1)
Overclocker 3 Apr 2003

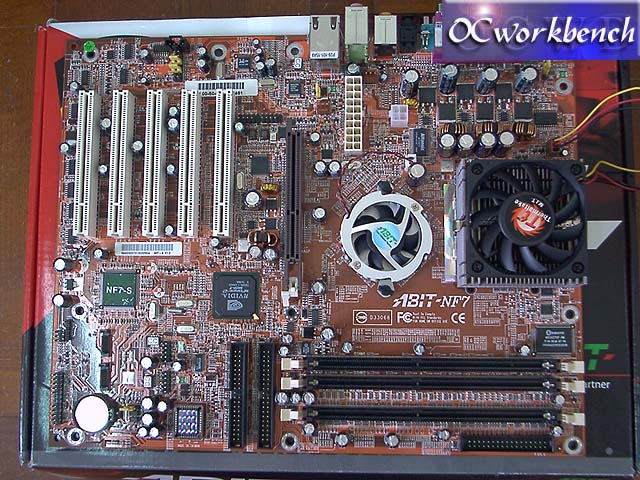

The Mainboard

ABIT NF7-S comes equipped with 5 PCI slots and 1 AGP slot. The board supports 2 serial ATA ports and 2 IDE channels. It also has Three DDR DIMM slots support up to 3GB of DDR memory, and optimized 128-bit architecture reduces memory latency. With the nForce2 MCP2-T, the APU (Audio Processing Unit) delivers Dolby Digital 5.1 cinematic-quality sound and 3D positional audio to your home PC. S/PDIF connector is also available at the back panel for digital out. A 10/100Mbps LAN is supported for instant connection to broadband internet. USB 2.0 and 1394 are available through brackets. SoftMenuIII is in for the best overclocking experience on this board.

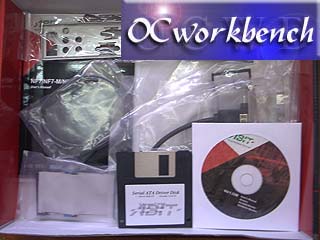

The Box Package	The package comes standard with CDROM, Manual, IDE cables, SATA cables, USB bracket, 1394 bracket and Serillel converter.
