ABIT NF7-S
v1.2 nForce2 Mainboard (7)

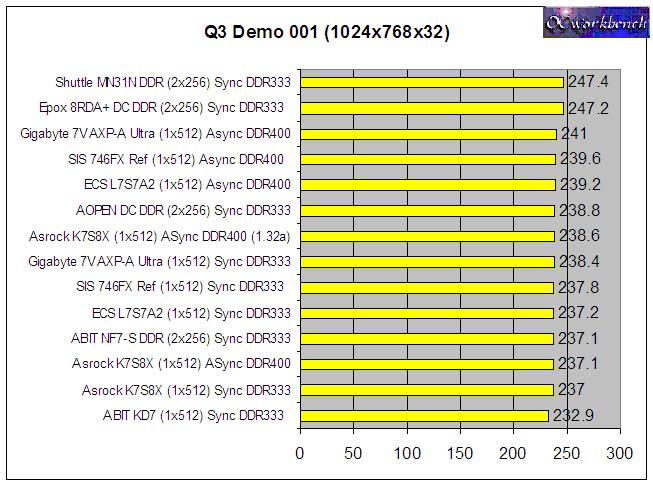

Benchmarking All boards running in SYNC DDR333 (166/166) otherwise specified. The FSB of the various boards are : Shuttle MN31N : 167.05Mhz Quake 3 Demo 001
Quake3 demo001 is a memory intensive application. The score of 237fps shows
that nForce2 boards 3D performance can vary up to 10fps from board to board due
to a 1mhz difference in clock. Although AGP is fixed at 66mhz, it seems that the

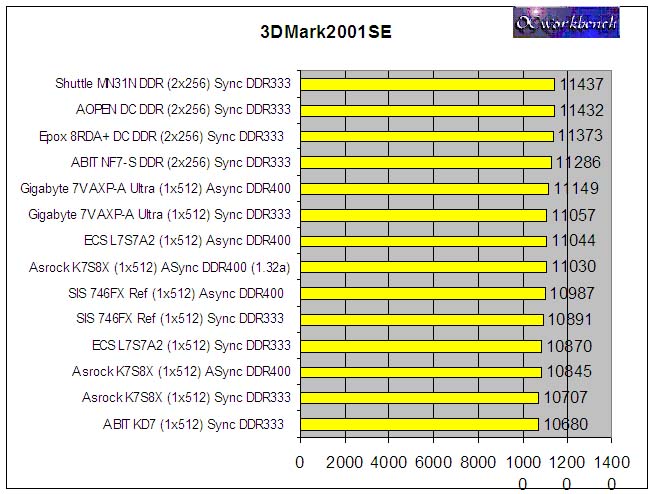

probable cause could be due to a BIOS that is not tuned up in 3D performance. 3Dmark2001 SE Build 330 In 3Dmark2001SE, ABIT NF7-S scores lower than the rest of the nForce2 boards
probably due to the slower CLK of 166.36mhz compared to 167.05 on other boards.

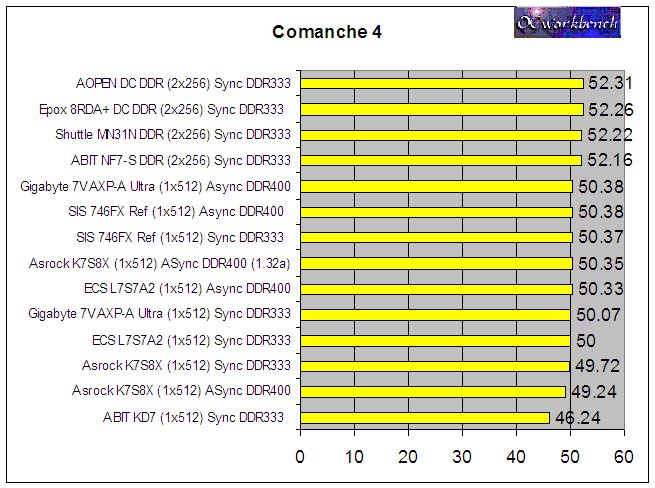

Overall, it still performs slightly better than most of the non Nforce2 boards. Comanche 4 Demo In Comanche 4, we see a similar pattern. It seems that nForce2 boards does
has an advantage in 3D applications over the other chipsets by a small
percentage. The ABIT NF7-S still lose out a bit to other nForce2 boards in the
comparison. |
