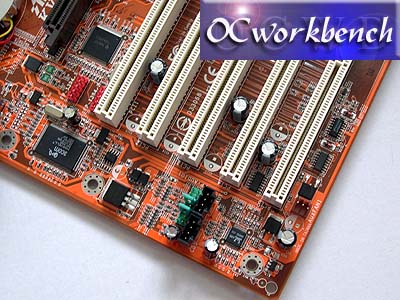

5 PCI, 1 AGP 8x slot. The 3COM Gigabit
Ethernet chip, Realtek ALC658 audio chip. |

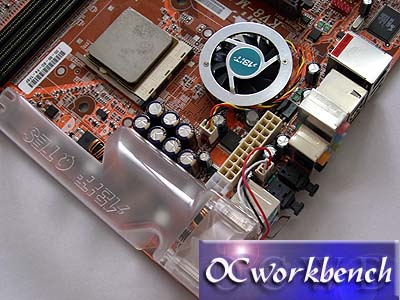

ABIT OTES for cooling down the Mosfets and
Capacitors. The Power connector and +12v connector. North Bridge K8T800. |
 |
 |
|

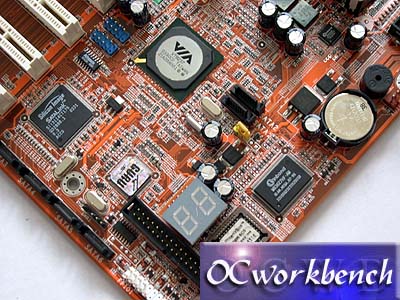

VIA 8237 South Bridge supporting 2 SATA
RAID 0/1/JDOB. Additional 4 SATA RAID ports supported by SiliconImage 3114
chip. |

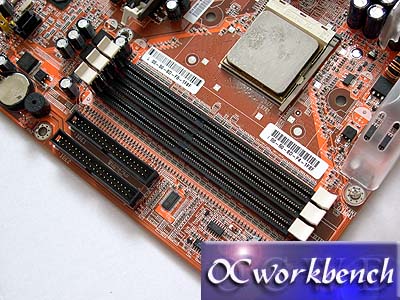

Socket 754 for Althon 64 3200+, 3400+
processor, 2 IDE channels. 3 DIMM slots supporting :
- Support 3 DIMM DDR 333
- Support 2 DIMM DDR 400
- Support 3 DIMM up to 2GB Max
|
 |
 |
|

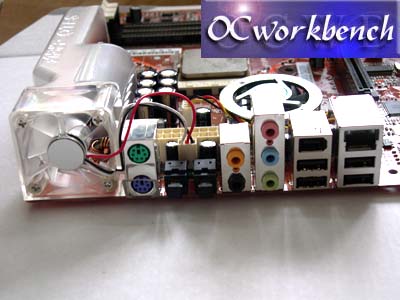

OTES Fan, PS/2 Keyboard Mouse, S/PDIF
connectors, audio connectors, 4 USB, Gigabit LAN and 1 x 1394 |

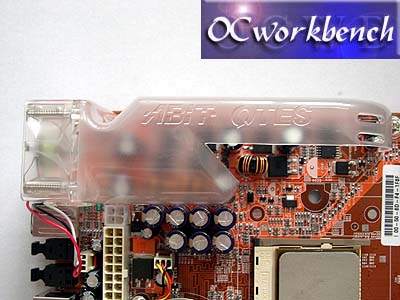

OTES covering the "hot" area of the board. |
 |
 |
|

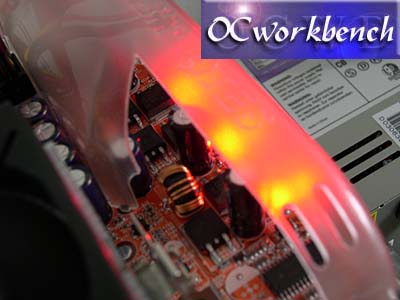

Red emitting LEDs in the OTES |

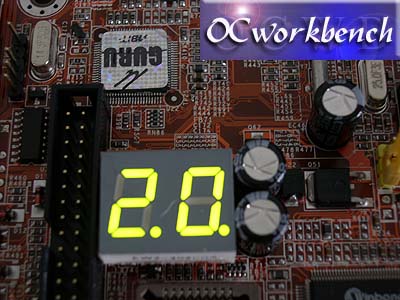

uGURU chip and the Diagnostic LED |
