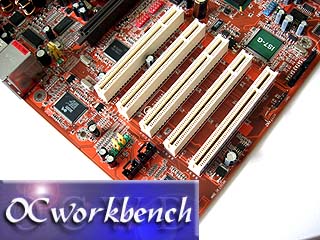

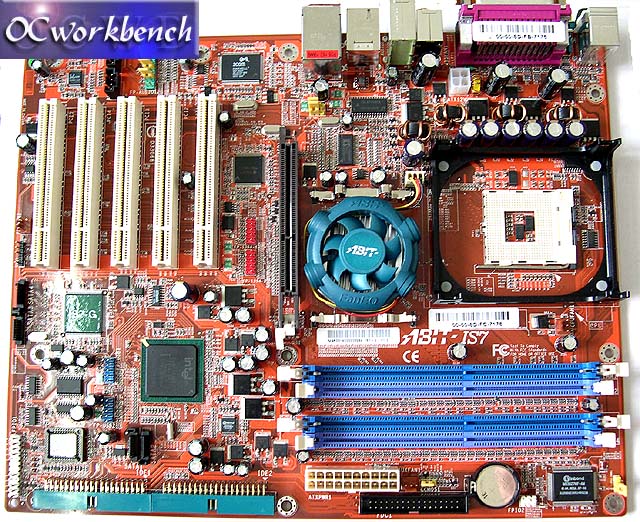

Top Right Corner of the mainboard. From here we can see 5
PCI slots and 1 AGP slot. The on board audio codec used is ALC650 6
channel. 3COM 3C940 Gigabit Ethernet chipset. |
The Socket 478 and the North Bridge. ICS
952607EF is used for controlling the large range of FSB. (up to 412Mhz FSB
selectable within BIOS). A 4 phase voltage design is used on board for
utmost stability. |
 |
 |
|

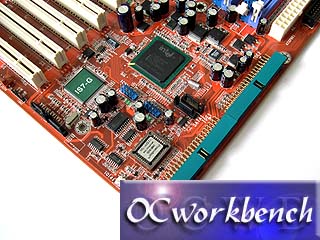

ICH5R supports two ports of SATA in RAID 0.
The other two ports of SATA is supported by SiliconImage Sil3112A chipset
(IS7-G sticker on it). This Sil3112A supports SATA RAID 0 or 1. |

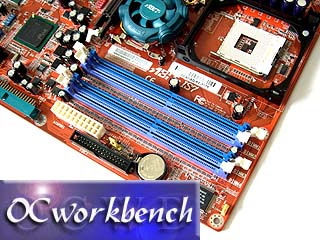

Four 184-pin DIMM sockets. Supports 4 DIMM
Single/Dual Channel DDR 400 memory. (Max. 4GB). |
 |
 |
|

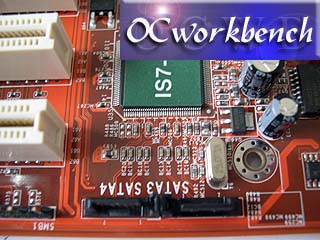

SATA 3, SATA 4 supported by SilconImage
Sil3112A SATA chipset (with IS7-G sticker on top). |

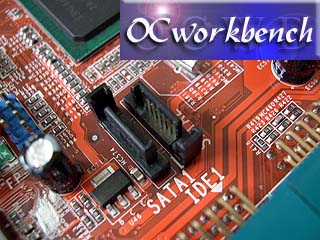

SATA 1 and SATA 2 on board. |
 |
 |
|

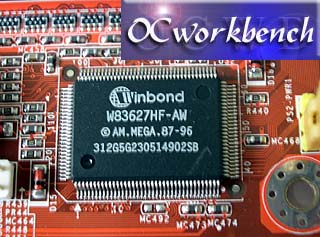

WINBOND W83627HF-AQ IO controller chip |

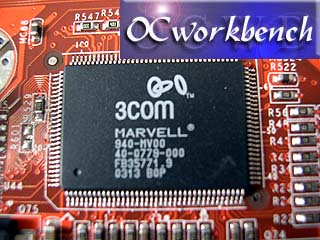

3COM 3C940 Gigabit chipset |
 |
 |
|

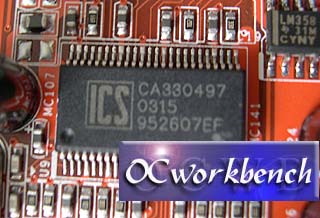

ICS 952607EF Clock Generator capable of FSB
100~412MHz |

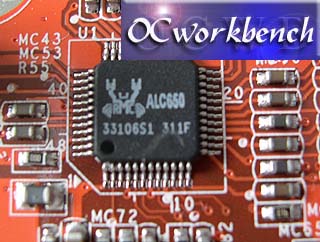

ALC650 6 channel audio chipset |
 |
The back panel of the IS7-G is well equipped
with multimedia connectors + 4 USB, 1 Gigabit LAN and 1 x 1394 port. |
