The Installation

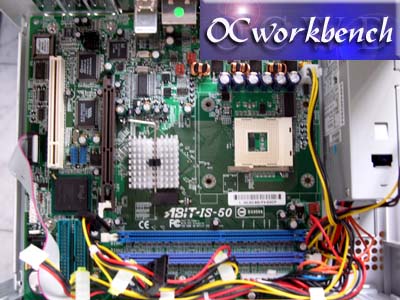

The Mainboard (Top View). 2 DIMM slots, 1 AGP, 1 PCI, Socket 478.

Socket 478 for Pentium 4 CPU up to 3.2GHz HT

The CPU is inserted and thermal module installed. There are no retention module. The heatsink is screwed onto the mainboard with four screws that comes with the heatsink

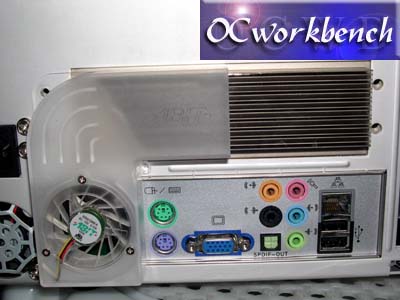

The Thermal module protruding from the back of the box. The fan duct is installed.

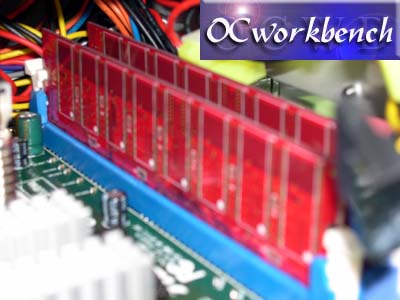

2 DIMM slots supporting Dual Channel DDR400/DDR333/DDR266 (max 2GB)

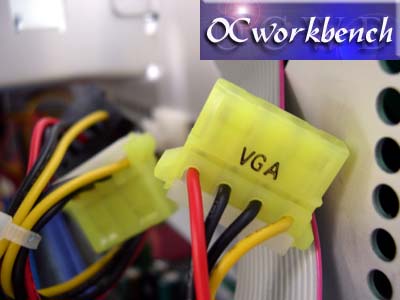

Power connectors are clearly labelled for CDROM, VGA etc.

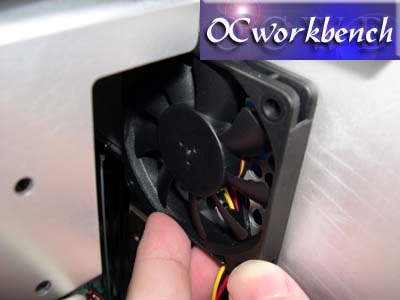

Exhaust Fan

The System fan is installed at the rear of the box to suck out the hot air within the box
