Triplex Xabre Pro (4)
amddiy 29 May 2002

The drivers used in the test are based on a pre-release driver 3.01.01. The official release version will be 3.01.02 and it will definitely be better.

In the comparison, we compare it to Gainward MX460、MX440 and other cards. We used Q3 Demo and 3Dmark2001SE on Athlon XP2100+.

Graphics card	Triplex Xabre Pro
Mainboard	Soltek SL75DRV5 KT333 CE
CPU	AMD XP2100+
FAN	COOLMASTER HHC-001
DDR MODULE	Samsung DDR 333 PC2700 CL=2
HARDDISK	SEAGATE 40GB 四代 7200RPM
LAN CARD	RTL8139C

Software

windows 98

SIS 3.01.01 driver

Q3 demo

3D MARK 2001 SE 32BIT

Xabre Pro 250/250MHZ

3D Mark 2001 SE 1024*768 32BIT

3D Mark 2001 SE 800*600 32BIT

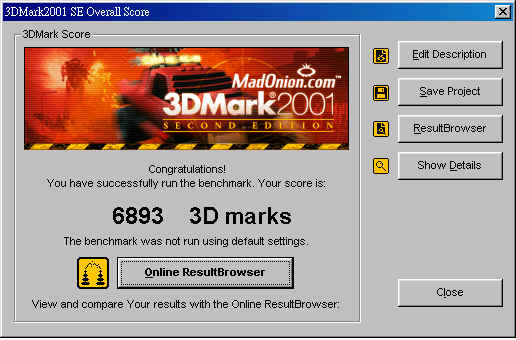

Triplex Xabre Pro overclock to 265/265MHZ

3D Mark 2001 SE 1024*768 32BIT

3D Mark 2001 SE 800*600 32BIT

We compared the results to MX460、MX440 and ATI REDEON

Triplex
	640*480 32bit	1024*768 32bit
Triplex Xabre Pro 250/250		6652
Triplex Xabre Pro 265/265		6893
Gainward 火狐460XP黃金版 MX460 64M		6522
Gainward 虫奎蛇 450T MX440 64M		3567
Gainward 鈦極4600XP Ti4600 64M		10116
Gainward 鈦極2200XP GF3 Ti200 64M	8758	8405
Gainward 鈦極210T GF3 Ti200 128M	8659	7476
Gainward 鈦極200T GF3 Ti200 64M	8286	7381
Radeon 8500 LE 64M	7954	6897

3D Mark 2001SE results shows that Triplex Xabre Pro 400's performance is definitely much better than MX460 and it is close to Ti4200. We also noticed that the performance is close to the ATi 8500LE. When we overclocked it, it overtook most of the cards that are of the same class.

QUAKE III Demo1
	1600*1200 32bit	1024*768 32bit
Triplex Xabre Pro 250/250		146.7
Triplex Xabre Pro 265/265		154.8
Gainward 火狐460XP黃金版	88.9	110.8
Gainward 虫奎蛇 450T MX440 64M	80.6	105.7
Gainward 鈦極4600XP Ti4600 64M	168.9	199.5
Gainward 鈦極2200XP GF3 Ti200 64M	108.6	163.8
Gainward 鈦極210T GF3 Ti200 128M	97.4	159.2
Gainward 鈦極200T GF3 Ti200 64M	93.2	122.8
Radeon 8500 LE	89.5	119.6

Looks like Xabre is here to stay and will compete head to head with the MX series of cards. At a lower cost and better performance, it might force the other chipset makers to come out with cheaper and faster solutions in the near future. With more competition, we the users will be the overall winner :)
