SiS745 Reference Board (5)
Overclocker 28 Feb 2002

Benchmarking

We conduct the usual tests on the setup with the following configuration :

Test System:

AMD AthlonXP 1500+ and Thermoengine heatsink/fan
IBM 15G 7200RPM ATA100 HD
AOPEN 40X CDROM
MSI Geforce3 Ti200 Graphics card
Nanya DDR333 256MB DDR
Channelwell 375W AMD Approved PSU

3DMark2001

Summary

AthlonXP1500+

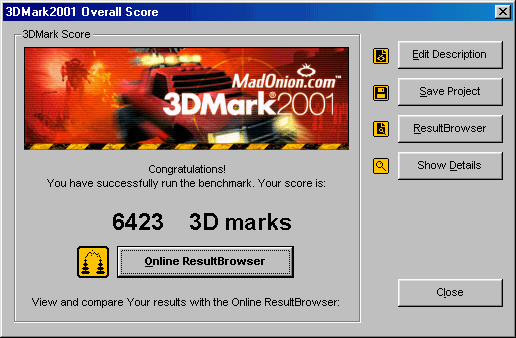

The SIS745 ref board scores 6423 which is just a few points behind ABIT KR7A, Shuttle AK35GT and EPoX 8KHA+. If you were to calculate in percentage, the difference is 0.1%. From the results we can see that ECS K7S6A seems to be 50 points behind the Reference board. In fact, it could be due to the BIOS that hasn't been fully tweaked and optimised.

	Iwill XP333 v2.0 CAS2 FAST	SiS745 Ref board Ultra timings	ECS K7S6A Ultra timings	Leadtek 7350KDA Ultra timings
3Dmark2001	6303	6423	6375	6399

	MSI KT3 Ultra ARU DDR266 Cas2 1T cmd	MSI KT3 Ultra ARU DDR333 Cas2 1T cmd	Gigabyte 7VRXP DDR266 Cas2 1T cmd	Gigabyte 7VTXH+ DDR333 Cas2 2T cmd	Shuttle AK35GTR Cas2 1T cmd	Gigabyte 7VTXH+ Cas2 1T cmd	ABIT KR7A CAS2 1Tcmd, Ultra	EPoX 8KHA+ CAS2,1Tcmd
3Dmark2001	6453	6486	6445	6461	6431	6423	6427	6431

FSB

SiS745 reference board = 133.6Mhz
Shuttle AK35GTR = 133.5Mhz
MSI KT3 Ultra ARU = 133.34Mhz
Gigabyte 7VRXP = 133.9Mhz
ECS K7S6A = 133.9Mhz
Gigabyte 7VTXH+ = 133.34Mhz
ABIT KR7A = 133.38Mhz
EPoX 8KHA+ = 133.64Mhz
Iwill XP333 = 132.68Mhz
Shuttle AK31 v3.1 = 133.5Mhz
MSI K7T266Pro2-RU = 133.8Mhz
Leadtek 7350KDA = 132.77Mhz
ECS K7S5A = 132.77Mhz
