SiS745 Reference board (3)
 Overclocker 28 Feb 2002

Benchmarking

We conduct the usual tests on the setup with the following configuration :

Test System:

  • AMD AthlonXP 1500+ and Thermoengine heatsink/fan
  • IBM 15G 7200RPM ATA100 HD
  • AOPEN 40X CDROM
  • MSI Geforce3 Ti200 Graphics card
  • Nanya DDR333 256MB DDR
  • Channelwell 375W AMD Approved PSU

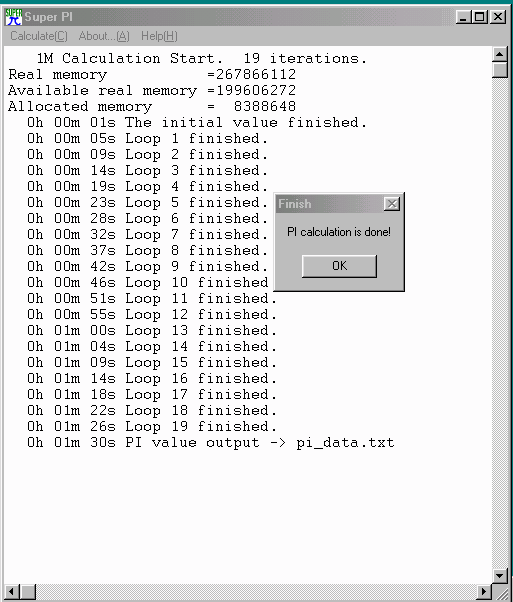

SuperPI

Summary

Based on the AthlonXP1500+

1m 30s seems to be the average of most boards tested so far. The SiS745 reference board also scores a score of 1min 30s which is faster than the ECS K7S6A and Leadtek 7350KDA. It is also on par with most of the boards tested so far.

  Iwill XP333 v2.0 CAS2 Fast SiS 745 Ref board Ultra timings ECS K7S6A timings Leadtek 7350KDA Ultra timings ECS K7S5A Ultra timings
Super PI - 1'30" 1'31" 1'31" -
  Gigabyte 7VRXP DDR266 1T cmd, Cas2 Gigabyte 7VRXP DDR333, 1T cmd, Cas 2 Gigabyte 7VRXP DDR266 1T cmd, Cas2 Gigabyte 7VRXP DDR333, 2T cmd, Cas 2 Shuttle AK35GTR
1T cmd Cas2		 Gigabyte 7VTXH+ EPoX
8KHA+ 1Tcmd, CAS2		 ABIT KR7A RAID CAS2, 1Tcmd,CPU
Fast Command decode Ultra		 Shuttle AK31 v3.1
Peformance Defaults		 MSI K7T266
Pro2-RU High Performance Defaults
Super PI 1'30" 1'28" 1'30" 1'30" 1'30" 1'33" 1'30" 1'29" - -



FSB

SiS745 reference board = 133.6Mhz
Shuttle AK35GTR = 133.5Mhz
MSI KT3 Ultra ARU = 133.34Mhz
Gigabyte 7VRXP = 133.9Mhz
ECS K7S6A = 133.9Mhz
Gigabyte 7VTXH+ = 134.2Mhz
ABIT KR7A RAID = 133.39Mhz
EPoX 8KHA+ = 133.64Mhz
Iwill XP333 = 132.68Mhz
Shuttle AK31 v3.1 = 133.5Mhz
MSI K7T266Pro2-RU = 133.8Mhz
Leadtek 7350KDA = 132.77Mhz
ECS K7S5A = 132.77Mhz
