* Support Intel PentiumR 4 CPU
* Support 400/533MHz Front-Side Bus
Integrated High Performance DDR SDRAM Controller
* Up to 2 DIMMs of DDR333/ 3 DIMMS of DDR266
* Maximum 3GB System Memory
* Suspend-to-RAM(STR)
Support AGP 8X Interface
* Support AGP 8X/4X Interface
* AGP V3.0/AGP V2.0 Compliant
* Support Fast Write Transaction
MuTIOL 1GR Delivering 1GB/s Bandwidth
* Proprietary Interconnect between SiS648 and SiS963
* Bi-Directional 16-bit Data Bus at 533MHz Operating Frequency

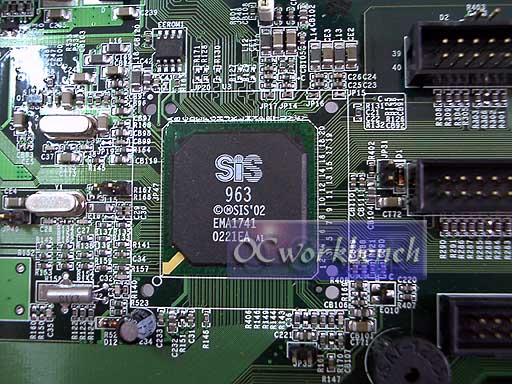

SiS 963 South Bridge
SiS963 MuTIOL 1GR Media I/O
MuTIOL 1G?Delivering 1GB/s Bandwidth
* Proprietary Interconnect between SiS648 and SiS963
* Bi-Directional 16-bit Data Bus at 533MHz Operating Frequency
USB 2.0/1.1 Host Controller
* One EHCI USB 2.0 Controller and 3 OHCI USB 1.1 Controllers
* Support Total 6 USB 2.0/1.1 Ports
* Support USB 2.0 High-Speed Device @480 Mb/s Transfer Rates
IEEE1394a Link Controller
* Compliant with 1394a OHCI 1.1
* Support Up to Three 1394 Devices with External PHY
* Support 400/200/100 Mb/s Transfer Rates
Fast Ethernet/Home Networking Controller with MII Interface
* Support 10/100Mb Fast Ethernet or 1/10Mb HomePNA 2.0 with
External PHY
Audio/Modem Controllers with AC?7 Interface
* AC’97 v2.2 Compliant
* Support 6 Channels of AC’97 Speakers Out and v.90 HSP Modem
Advanced Power Management
* ACPI 1.0b and APM 1.2 Compliant
Dual IDE Channels with ATA 133/100/66
Support Up to 6 PCI Masters
LPC 1.0 Interface
Integrated RTC
Integrated Keyboard/PS2 Mouse Controller
PC2001 Compliant
