SiS 645DX Reference Board (4)
Overclocker 4 March 2002

SiS645DX

Benchmarking

We conduct the usual tests on the setup with the following configuration :

Test System:

• Intel Pentium 4 ES 1.5Ghz
• ThermalTake heatsink/fan
• IBM 13.5GB 7200 RPM HD
• MSI Geforce3 Ti200
• 512MB Winbond DDR333 DDR
• IBM 20G ATA100 HD
• Windows 2000 + SP2
• SiS1.09m AGP/IDE drivers

In our tests, we ran the system under 3 modes. Sync 133 optimised, Async 133/166 optimised and Async 133/200. At 133/166 (DDR333), ram timings are CAS2 Ultra, at 133/200 (DDR400), ram timings are CAS 2 Fast. The rest are at defaults. We will investigate the results of the various benchmarking softwares followed by 3D benchmarking in pages 6 and 7.

• Winbench99
• Content Creation Winstone2002
• Business Winstone 2001

ZD Winbench99

WinBench 99 is a subsystem-level benchmark that measures the performance of a PC's graphics, disk, and video subsystems in a Windows environment. WinBench 99's tests can run on Windows 95, Windows 98, Windows NT, Windows 2000, and Windows Me systems. In our tests, we measure the disk performances.

Summary

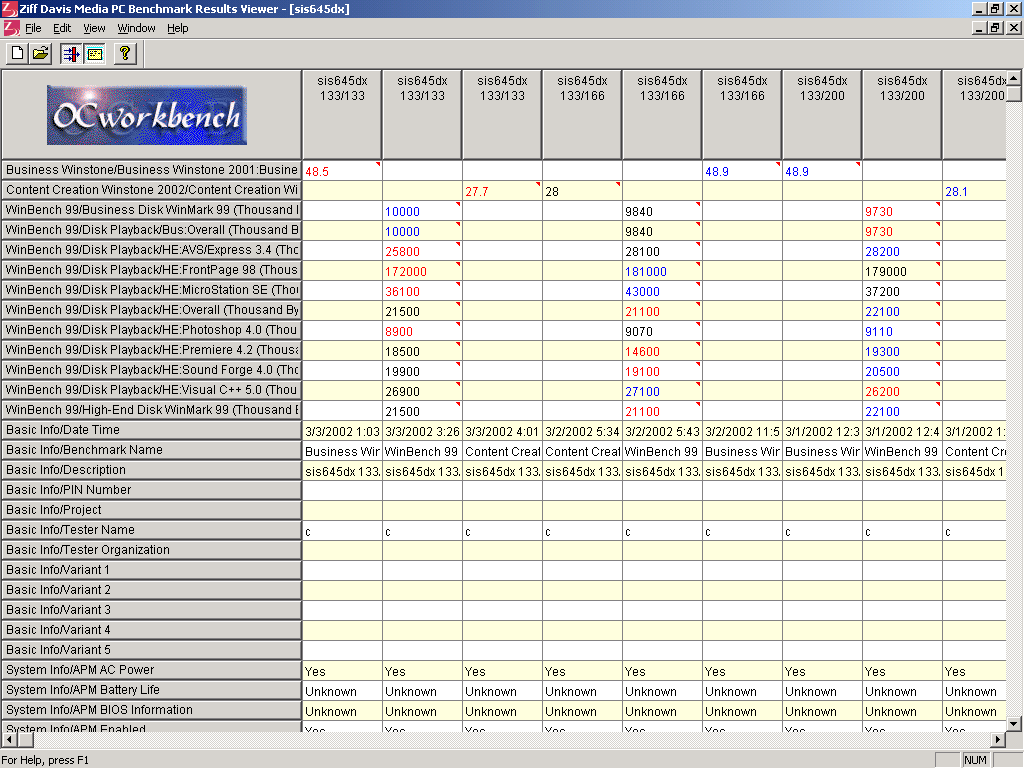

The results are as tabulated below. The disk marks using ATA-100 is quite good. The Business Disk Winmark99 scores well above 9000.

Next
