Shuttle SS50 P4
Barebone System (2)
Overclocker 4 Apr 2002
Benchmarking
We conduct the usual tests on the setup with
the following configuration :
Test System:
- Intel Pentium 4 ES 1.5Ghz + provided
heatsink/fan
- IBM 13.5GB ATA100 7200 RPM HD
- 256MB Nanya DDR333 DDR CAS 2.5
- 16X ASUS DVDROM
In our tests, we set the RAM at CAS2 Ultra

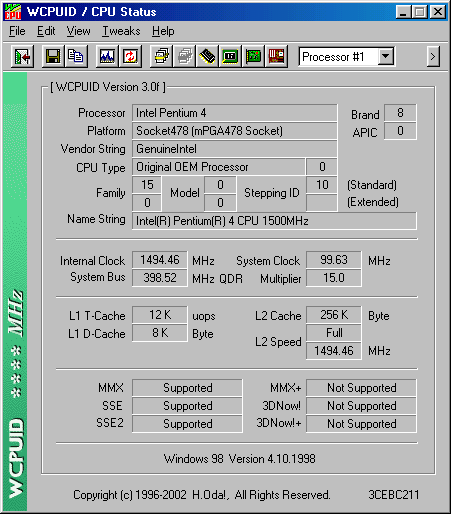

timings and run the system under 200/266 mode. The following screen shots the WCPUID of
the frequency of the FSB. It is 0.4mhz below the 100Mhz.

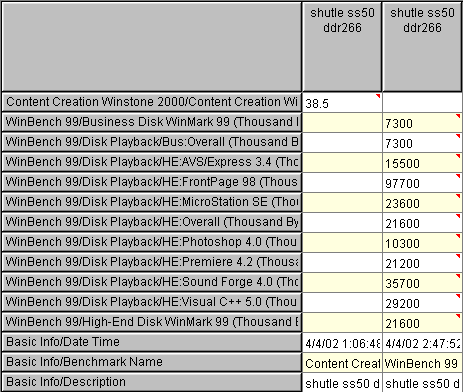

ZD Winbench99 and CC
Winstone2000
Summary
|
Shuttle
SS50 (SiS645 DDR266) |
ECS
L4S5A (SiS645 DDR333) |
ABIT
SD7-533r (SiS645 DDR200
/266) |
ABIT
SD7-533 (SiS645 DDR200
/333) |
MSI
645Ultr (SiS645 DDR200
/266) |
MSI645
Ultra
(SiS645 DDR200
/333) |
ECS
P4S5A (SiS645 DDR) 200/266 |
ECS
P4S5A (SiS645 DDR) 200/333 |
SiS645
Ref Board 200/266 |
SiS645
Ref Board 200/333 |
| Business
Disk Winmark 99 |
7300 |
7790 |
5760 |
5520 |
6690 |
5950 |
5520 |
5890 |
5600 |
5840 |
| High
End Disk Winmark 99 |
21600 |
21900 |
20100 |
19100 |
19700 |
19800 |
20100 |
18900 |
22000 |
19600 |
| CPUMark99 |
- |
- |
- |
- |
92.7 |
92.8 |
90.7 |
92.6 |
90.3 |
93.3 |
| FPUMark99 |
- |
- |
- |
- |
5200 |
5170 |
5170 |
5160 |
5220 |
5210 |
| CC
Winstone2000 |
38.5 |
39.5 |
39.6 |
41.8 |
40.1 |
39.2 |
39.1 |
39.5 |
40.7 |
41.8 |
Due to the fact that the mainboard is a SiS650
board that has integrated video, this might be the reason why the content
creation results are slightly slower than the rest of the SiS645 boards. In
fact, we wanted to test it at DDR333 as the option 3:5 is available. What we
have is a yellow exclamation mark in device manager under the Primary IDE
controller. Although it runs, CC Winstone and Disk Winmark results fell almost
by half. Since DDR333 is not really an official standard, we decided to leave it
out and concentrate our report based at async DDR266. I think a new BIOS might
be able to resolve the conflict when running at DDR333 mode.
|
MSI
845
Ultra
DDR
200/266 |
ABIT
BD7 RAID (i845
DDR 200/266 |
DFI
NB70-
SC (i845
DDR 200/266 |
ALi
ALADDiN
P4 DDR Ref DDR200
/266 |
Shuttle
AV40R (p4x266 ddr) 200/266 |
2theMax
EP-4B2A (i845 + SDR) 100/133 |
ABIT
TH7 II-RAID (i850 + RAMBUS) 100/133 |
| Business
Disk Winmark 99 |
5960 |
5880 |
6220 |
11100 |
5370 |
5590 |
6280 |
| High
End Disk Winmark 99 |
20900 |
21300 |
22200 |
25600 |
19700 |
20100 |
20800 |
| CPUMark99 |
- |
- |
- |
91.9 |
92.5 |
89.1 |
92.1 |
| FPUMark99 |
- |
- |
- |
5190 |
5220 |
5210 |
5160 |
| CC
Winstone2000 |
42.1 |
41.5 |
42.4 |
40 |
37.5 |
36.6 |
38.5 |
FSB
Shuttle SS50 = 99.62 (200/266)
ECS L4S5A = 99.59Mhz (200/333)
ABIT SD7-533 = 100.9Mhz (200/266), 99.75
(200/333)
ALi ALADDiNP4 Ref = 100.00Mhz
MSI 645Ultra = 100.7Mhz (200/266), 100.1Mhz (200/333)
ECS P4S5A = 100.00Mhz
SiS645 Ref = 100.67 (200/266), 100.9 (200/333)
Shuttle AV40R = 101.25Mhz
2themax EP-4B2A = 101.0Mhz
ABIT TH7-II RAID = 100.00Mhz
DFI NB70-SC = 100.2Mhz
ABIT BD7-RAID = 100.0Mhz
MSI 845Ultra = 100.94Mhz
