Shuttle SS40 SiS740 Barebone System Review (1)
Overclocker 16 May 2002

Ever considered replacing your desktop machine with something that has a smaller footprint and yet offers the capabilities of the big brands? Shuttle SS40 might just be the alternative you have been looking for after the successful SS50 which is for the Pentium 4 Socket 478. SS40 offers the most integrated solution that should be more than sufficient if you are thinking of using it as a desktop replacement. Measuring a dimension of 201(w) x 188(h) x 291(l) mm, it is small and compact inside.

As we all know, the SiS740 chipset is the video integrated version of the SiS735 chipset. The Shuttle SS40 is based on this integrated chipset which offers basic 2D/3D video that offers a performance close to GF2 MX200 which is fundamental for most commercial needs and some 3D games.

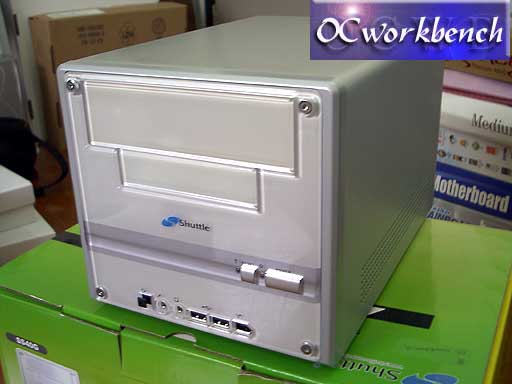

On top of that, this box comes with ports for instant connectivity to external peripherals. On the front panel, we can see a SPDIF connector, MIC, Earphone, 2 USB ports, Firewire connector. On the rear are more connectors like Com1/Com2, TVout, 1394 port, 2 USB, 2 Firewire, 1 LAN, PS/2 Keyboard, PS/2 mouse, 6 channel audio output (spk out, line out, line in). Below are the specifications and followed by a photo gallery.

Specifications

SS40 Mini Computer System

Specifications:


CPU Support: Socket A

AMD Athlon / Duron with 200 / 266 MHz FSB
AMD Athlon XP CPU with 266MHz FSB

Chipsets: SiS 740
(North) SiS740
Integrated AMD socket A CPU host interface controller
Support DDR200/266 DDR SDRAM interface
Support AGP interface
Support 533MB/s MuTIOL Connect to SiS961
Support ACPI 1.0b compliant power management
Support APM 1.2 compliant power management

(South) SiS961
Support UDMA 33/66/100 IDE interface
Support USB1.1 interface
Support ACPI 1.0b compliant power management
Integrated Real Time Clock (RTC) with 256B CMOS SRAM
Supports PCI interface


Form Factor:
Shuttle Form Factor

Memory
2 x 184 pin DDR SDRAM Socket
Support DDR200/266 un-buffer DDR SDRAM up to 2GB capacity

VGA:Build in SiS 740
AGP v2.0 Compliant
Built-in a high performance 256-bit 3D engine
Built-in GDI+ Accelerator
Built-in programmable 24-bit true-color RAMDAC up to 333 MHz pixel clock

AudioC-Media 8738-PCI-6CH/LX
Support 5.1 speakers, C3DX positional audio in 6 CH speaker mode
HRTF-3D positional audio, supporting Direct Sound 3D and A3D interface
Legacy SBPRO compatible

IEEE 1394a :Lucent FW323
1394a OHCI link and PHY in single package
Complies with 1394 OHCI specification revision 1.0
Provides three fully compliant cable ports
Support 400Mb/s, 200Mb/s, 100Mb/s data transfer rate

Ethernet:Realtek 8100B
IEEE 802.3u 100Base-T specifications compliant
10 Mb/s and 100 Mb/s operation
Supports Wake-On-LAN function

TV-Out Function:SiS301
Supports PAL and NTSC Systems
Supports Composite, S-Video, and Component R/G/B Output Signals.
Supports maximum input active resolution at PAL and NTSC system to 800x600.

Expansion Slot:2 x PCI slots
PCI 2.2 compliant, 32-bit BUS Master Slots
133 Mbyte / sec maximum throughput

LPC I/O:ITE 8705F

Comply with Intel Low Pin Count Interface Specification Rev. 1.0
ACPI V. 1.0 compliant
Built in H/W monitor feature

Two 16C550 UARTs
Supports two standard Serial Ports

Floppy Disk Controller
Supports two 360K/ 720K/ 1.2M/ 1.44M/ 2.88M floppy disk drives
Enhanced digital data separator
3-Mode drives supported

Keyboard Controller
Support power-failure resume and power button de-bounce

H/W Monitor: Built in ITE 8705F
2 thermal inputs from remote thermal resistor to monitor system temperature
1 thermal inputs from thermal diode to monitor CPU temperature
8 voltage monitor inputs
1 chassis intrusion input
Monitors 3 fan tachometer inputs
Smart Guardian Controller to provide programmable fan speed automatic control

IDE interface:
2 x UltraDMA/100 IDE Channels Master from SiS961
80-pin Cable Backward Compatible Legacy ATAPI Devices
ATAPI IDE CD-ROM, CD-R, CD-RW, and LS-120 Supports

Power Management

APM 1.2 compliant

ACPI 1.0 compliant
Support multiple system suspend types- suspend to DRAM, suspend to disk, and all with hardware automatic wake-up

BIOS: Award PnP BIOS
Stored in 2 Mb LPC flash memory
DMI 2.3
Bootable from Floppy, ATAPI device, USB device, SCSI device
On Board Ports / Connectors / Jumpers (front/back panel)

Front Panel
2 x USB ports
1 x 1394 ports
1 x Mic-In
1 x Speaker-Out
Power-On
Reset
1 x 3.5" bay
1 x 5.25" bay

Back Panel Ports and Connectors
2 x PCI slot panel
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x VGA port
2 x Serial Port
2 x 1394 ports
1 x S-Video and Composite connector
2 x USB ports
1 x RJ45 port
1 x line-in connector
1 x line-out connector
1 x Center/Bass connector

Other connectors and jumpers
3 x fan connectors
1 x ATX power connector
1 x 4 pin 12V ATX power connector
Clear CMOS

Headers
1 sets of 2 x5 pin Front Panel USB header
1 sets of 2 x5 pin Front Panel IEEE1394a header
CD_In header
Microphone_In header
Speaker_Out header

Dimension / Material

200(w) x 181(h) x 280(d) mm

Aluminum

Power

Dimension:
201(w) x 188(h) x 291(l) mm

Basic Requirement:

Rail Min Max Peak
12V 2A 10A 13A
5V 0.5A 9.5A (note)
3.3V 1A 14.5A (note)
-12V 0 0.3A
5VSB 0 2A 3A

*note : 3.3V+5V < 51W

Outlet:
20pin ATX style X1: 15 cm
4 Pin: 10 cm
4 Pin + Smaller 4 Pin: 20 cm + 10 cm
4 Pin + Smaller 4 Pin + 4 Pin: 60 cm + 12 cm +12 cm

Input:
110/220 auto or manual switchable - without PFC
220 only - with PFC

Power Cord: depends on individual region demand

Accessory:CD-ROM Disk:

CPU Cooler
Install Guide
FS40 User manual

FS40 CD-ROM Disk:
a. SIS IDE Driver
b. SIS AGP driver
c. CMEDIA Audio driver
d. CMEDIA Audio Utility
e. ITE Smart Guardian Utility
f. User manuals in PDF format

Cables
a. 1 x 21cm ATA 100/66 cable
b. 1 x 60cm ATA 100/66 cable (bend 90?from M/B side)
c. 1 x 32cm Floppy cable (bend 90?at 16.5 cm from M/B side)
d. 1 x Min Din 7 Pin to RCA

Others
a. Screws
b. 2x2 cm Twin Adhesive
