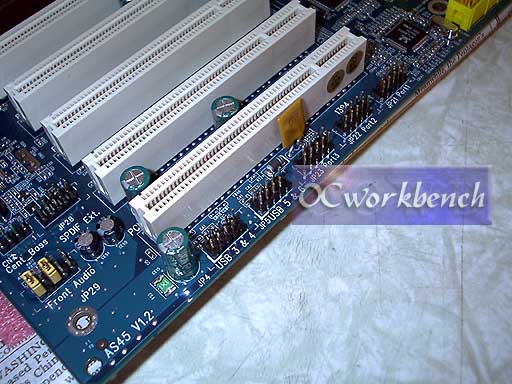

This board supports 6 USB ports. On the rear of
the PCB, you can see the version of the board - AS45 v1.2. The other connectors
are the 1394 extension connectors. On the left of the board, you can see the
jumpers for configuring the 6 ch audio.
2

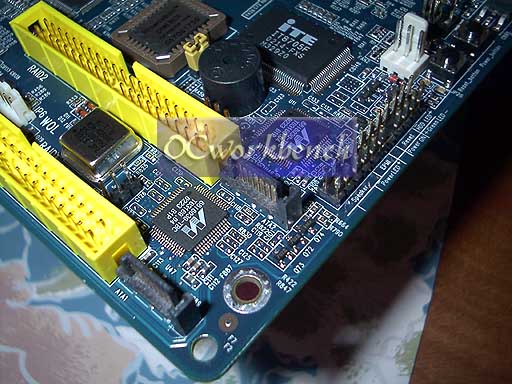

ATA-133 RAID channels supported by Highpoint HPT372 chipset. Next to the yellow
RAID connectors are the S-ATA connectors. The supporting chipset is next to it.
On the right hand top corner of the photo below, you can see two switches, this
design is probably borrowed from SiS Reference board. Instead of using your
screw driver to short the power on or reset pins, you can press on the Power On
and Reset buttons for easy testing of the mainboard.

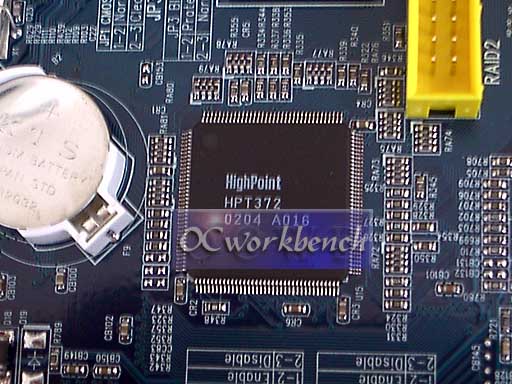

The HPT372 Highpoint ATA-133 RAID chipset

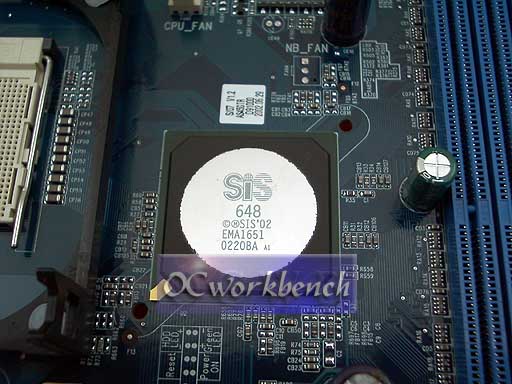

SIS 648 Chipset - North Bridge
Host Interface Controller
* Support Intel PentiumR 4 CPU
* Support 400/533MHz Front-Side Bus
Integrated High Performance DDR SDRAM Controller
* Up to 2 DIMMs of DDR333/ 3 DIMMS of DDR266
* Maximum 3GB System Memory
* Suspend-to-RAM(STR)
Support AGP 8X Interface
* Support AGP 8X/4X Interface
* AGP V3.0/AGP V2.0 Compliant
* Support Fast Write Transaction
MuTIOL 1GR Delivering 1GB/s Bandwidth
* Proprietary Interconnect between SiS648 and SiS963
* Bi-Directional 16-bit Data Bus at 533MHz Operating Frequency

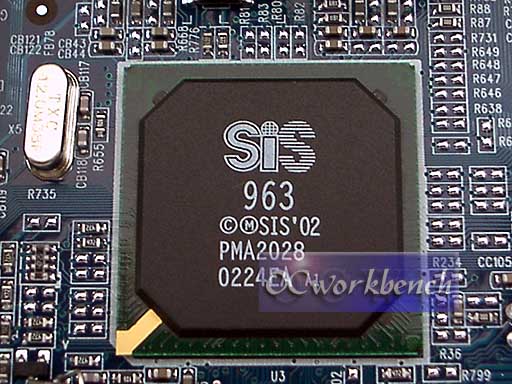

SiS 963 South Bridge
SiS963 MuTIOL 1GR Media I/O
MuTIOL 1G?Delivering 1GB/s Bandwidth
* Proprietary Interconnect between SiS648 and SiS963
* Bi-Directional 16-bit Data Bus at 533MHz Operating Frequency
USB 2.0/1.1 Host Controller
* One EHCI USB 2.0 Controller and 3 OHCI USB 1.1 Controllers
* Support Total 6 USB 2.0/1.1 Ports
* Support USB 2.0 High-Speed Device @480 Mb/s Transfer Rates
IEEE1394a Link Controller
* Compliant with 1394a OHCI 1.1
* Support Up to Three 1394 Devices with External PHY
* Support 400/200/100 Mb/s Transfer Rates
Fast Ethernet/Home Networking Controller with MII Interface
* Support 10/100Mb Fast Ethernet or 1/10Mb HomePNA 2.0 with
External PHY
Audio/Modem Controllers with AC?7 Interface
* AC’97 v2.2 Compliant
* Support 6 Channels of AC’97 Speakers Out and v.90 HSP Modem
Advanced Power Management
* ACPI 1.0b and APM 1.2 Compliant
Dual IDE Channels with ATA 133/100/66
Support Up to 6 PCI Masters
LPC 1.0 Interface
Integrated RTC
Integrated Keyboard/PS2 Mouse Controller
PC2001 Compliant
