Shuttle AK35GTR v2.2 VIA KT33 mainboard (2)
Overclocker 22 Mar 2002

<A target="_top" HREF="http://www.burstnet.com/ads/ad5180a- map.cgi/CACHEBUSTING_NUMBER"> <IMG SRC="http://www.burstnet.com/cgi- bin/ads/ad5180a.cgi/CACHEBUSTING_NUMBER" width="32" height="32"> border="0" width="468" height="60" alt="Please support our sponsor."> </A>

Benchmarking

We conduct the usual tests on the setup with the following configuration :

Test System:

AMD AthlonXP 1500+ and Thermoengine heatsink/fan
IBM 15G 7200RPM ATA100 HD
AOPEN 40X CDROM
MSI Geforce3 Ti200 Graphics card
Nanya DDR333 256MB DDR
Channelwell 375W AMD Approved PSU

We used the BIOS supplied with the mainboard and tested the board in DDR333. We took the readings off WCPUID which shows 133.5Mhz. The system runs CAS 2 1T cmd Ultra.

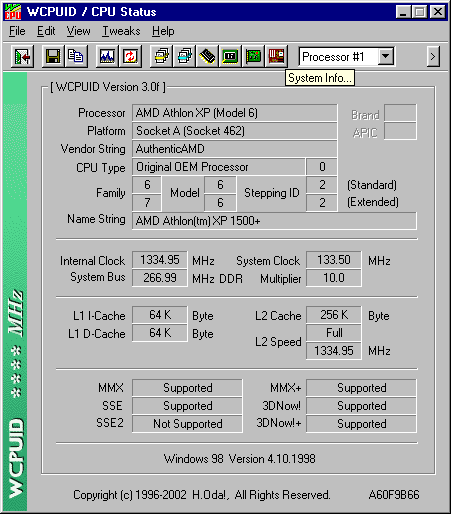

WCPUID Screen Shot

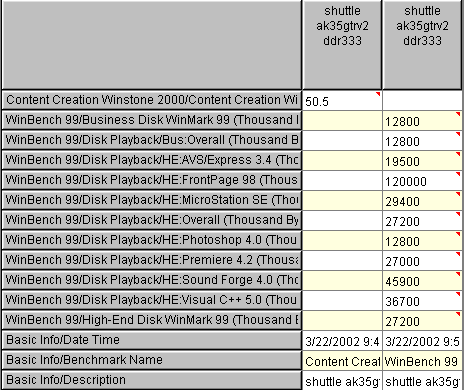

ZD Winbench99 and CC Winstone 2000 scores

Summary

Based on the AthlonXP1500+

Looks like we have another winner. At this moment, it can be seen that the CC Winstone2000 results are the best among all the current KT333 and KT266A boards. The disk marks are average among the KT333 boards.

	Shuttle Ak35GTR v2.x 1T cmd, Cas2, Ultra DDR333	MSI KT3 Ultra ARU 1T cmd, Cas2, Ultra DDR266	MSI KT3 Ultra ARU 1T cmd, Cas2, Ultra DDR333	Gigabyte 7VRXP 1T cmd, Cas2, Ultra DDR266	Gigabyte 7VRXP 2T cmd, Cas2, Ultra DDR333	Shuttle Ak35GTR 1T cmd Cas 2	Gigabyte 7VTXH+ 1T cmd, Cas2	ABIT KR7A RAID CAS2, 1Tcmd,CPU Fast Command decode Ultra	EPoX 8KTA+ Cas2,1T CMD	Shuttle AK31 v3.1 Peformance Defaults	MSI K7T266 Pro2-RU High Performance Defaults
CC Winstone2000	50.5	48.7	49.5	50.2	49.7	49.8	49.8	49.1	48	48	46.2
CPUMark99	-	-	-	-	-	-	-	128	126	125	126
FPUmark99	-	-	-	-	-	-	-	7290	7300	7270	7290
Business Disk Winmark	12800	13000	12900	13100	13200	8080	13330	6930	5660	7410	7190
High End Disk Winmark	27200	27500	27600	26800	27300	22800	27400	23100	22500	25700	24400

	Iwill XP333 v2.0 CAS2 Fast	ECS K7S6A Ultra timings	Leadtek 7350KDA Ultra timings	ECS K7S5A Ultra timings
CC Winstone2000	48.5	49.1	46.2	46.1
CPUMark99	124	-	125	123
FPUmark99	7230	-	7240	7260
Business Disk Winmark	6790	7810	6260	8630
High End Disk Winmark	23100	22400	20800	24800

FSB

Shuttle AK35GTR v2.2 = 133.5Mhz
Shuttle AK35GTR = 133.5Mhz
MSI KT3 Ultra ARU = 133.34Mhz
Gigabyte 7VRXP = 133.9Mhz
ECS K7S6A = 133.9Mhz
Gigabyte 7VTXH+ = 134.2Mhz
ABIT KR7A RAID = 133.39Mhz
EPoX 8KHA+ = 133.64Mhz
Iwill XP333 = 132.68Mhz
Shuttle AK31 v3.1 = 133.5Mhz
MSI K7T266Pro2-RU = 133.8Mhz
Leadtek 7350KDA = 132.77Mhz
ECS K7S5A = 132.77Mhz
