Shuttle AK35GTR (5)
Overclocker 22 Feb 2002
Benchmarking
We conduct the usual tests on the setup with
the following configuration :
Test System:
- AMD AthlonXP 1500+ and Thermoengine heatsink/fan
- IBM 15G 7200RPM ATA100 HD
- AOPEN 40X CDROM
- MSI Geforce3 Ti200 Graphics card
- Nanya DDR333 256MB DDR
- Channelwell 375W AMD Approved PSU

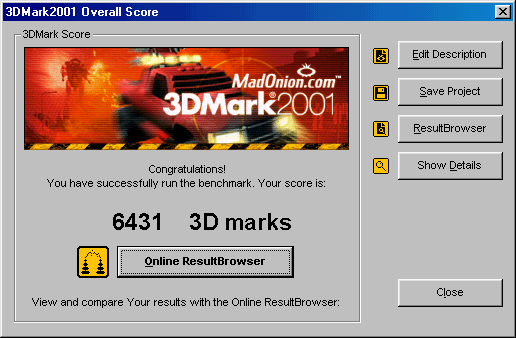

3DMark2001
DDR266
Summary
AthlonXP1500+
Considering the fact that EPoX 8KHA+ scored the
same result as Shuttle AK35GTR but FSB = 133.64Mhz and Shuttle AK35gtr was
running at 133.5Mhz. Looks like we have a winner in the 3D category for KT266A.
The KT333s scores slightly higher scores than those of KT266A in the comparison.
| |
MSI
KT3 Ultra ARU DDR266 Cas2 1T cmd |
MSI
KT3 Ultra ARU DDR333 Cas2 1T cmd |
Gigabyte
7VRXP DDR266 Cas2 1T cmd |
Gigabyte
7VTXH+ DDR333 Cas2 2T cmd |
Shuttle
AK35GTR Cas2 1T cmd |
Gigabyte
7VTXH+ Cas2 1T cmd |
ABIT
KR7A CAS2 1Tcmd, Ultra |
EPoX
8KHA+ CAS2,1Tcmd |
| 3Dmark2001 |
6453 |
6486 |
6445 |
6461 |
6431 |
6423 |
6427 |
6431 |
| |
Iwill
XP333 v2.0 CAS2 FAST |
ECS
K7S6A Ultra timings |
Leadtek
7350KDA Ultra timings |
| 3Dmark2001 |
6303 |
6375 |
6399 |
FSB
Shuttle AK35GTR = 133.5Mhz
MSI KT3 Ultra ARU = 133.34Mhz
Gigabyte 7VRXP = 133.9Mhz
ECS K7S6A = 133.9Mhz
Gigabyte 7VTXH+ = 133.34Mhz
ABIT KR7A = 133.38Mhz
EPoX 8KHA+ = 133.64Mhz
Iwill XP333 = 132.68Mhz
Shuttle AK31 v3.1 = 133.5Mhz
MSI K7T266Pro2-RU = 133.8Mhz
Leadtek 7350KDA = 132.77Mhz
ECS K7S5A = 132.77Mhz
Next |
