Shuttle AK35GTR Gallery (3)
Overclocker 21 Feb 2002

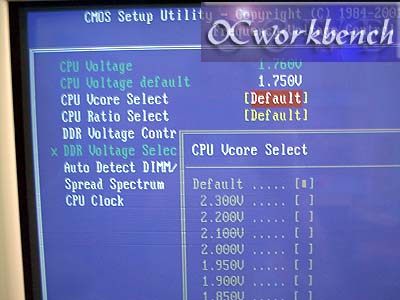

This is probably the only board that allows Vcore to be adjustable up to a high of 1.10v ~ 2.3v. Normal mainboard usually stop at a maximum of 1.85v while Shuttle provided more for the overclockers.

CPU Ratio is selectable from 5.5x ~ 12.5x. DDR voltage is selectable too from 2.5v, 2.55, 2.6, 2.7v. CPU Clock is adjustable from 133 ~ 200Mhz at 1Mhz stepping.

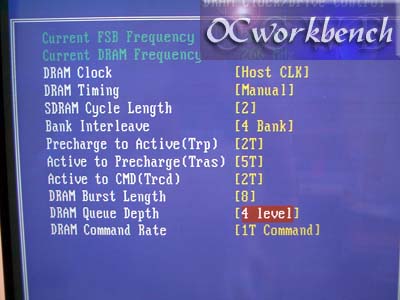

To set up the system to run at it's optimum performance, we set DRAM Clock to HOST CLK. DRAM Timing to MANUAL.  We set 4 way interleaving on, ram timings of 2,5,2,8,4 and 1T cmd is enabled.

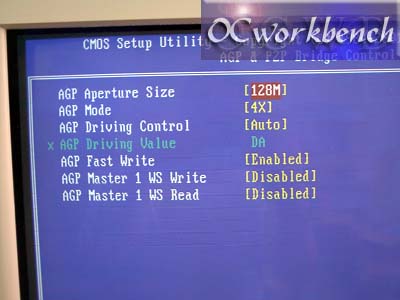

AGP Aperture Size is set to 128MB. AGP 4X, AGP fast write is turned on in our test for optimum AGP performance.

Looks like the Shuttle AK35GTR has one of the most options for you to tweak your machine to perform at it's peak.
