MSI KT3 Ultra
ARU (2)
Overclocker 19 Feb 2002
Benchmarking
We conduct the usual tests on the setup with
the following configuration :
Test System:
- AMD AthlonXP 1500+ and Thermoengine heatsink/fan
- Maxtor 40G ATA133 HD
- AOPEN 40X CDROM
- MSI Geforce3 Ti200 Graphics card
- Nanya DDR333 256MB DDR
- Channelwell 375W AMD Approved PSU
We used the BIOS supplied with the mainboard
and tested the board in both DDR266 and
DDR333 Async (CPU=133Mhz, MEM=166Mhz) mode. We took the readings off WCPUID and
noticed that at both modes, the WCPUID reveals 133.34Mhz FSB. The system runs
CAS 2 1T cmd Ultra.

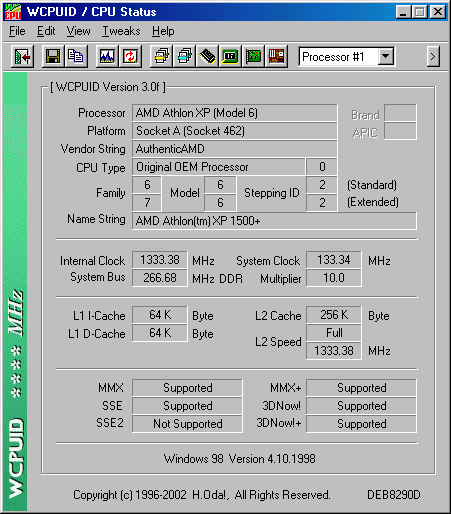

WCPUID Screen Shot

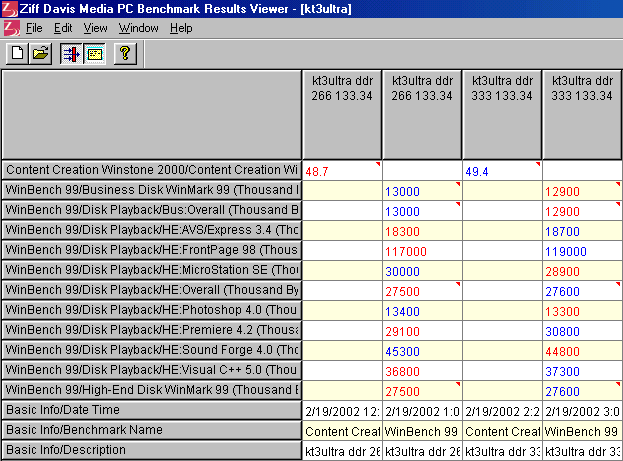

ZD Winbench99 and CC
Winstone 2000 scores
Summary
Based on the AthlonXP1500+
The table is a comparison of the results based
on both 133/133 (DDR266) and 133/166 (DDR333) setting. A score of 48.7
(DDR266) and 49.5 (DDR333) is similar to most of the KT266A boards we have
tested before. If we were to compare with MSI K7T266Pro2-RU, we can see the
increased in performance. The Gigabyte family seems to score slightly better
than the MSI.
Disk benchmarks scores similarly to those of
GA-7VRXP (KT333). The test was done on a Maxtor ATA133 HD 7200RPM. Under the
high end disk winmark, the MSI seems to outperform the rest.
| |
MSI
KT3 Ultra ARU
1T cmd, Cas2, Ultra DDR266 |
MSI
KT3 Ultra ARU
1T cmd, Cas2, Ultra DDR333 |
Gigabyte
7VRXP
1T cmd, Cas2, Ultra DDR266 |
Gigabyte
7VRXP
2T cmd, Cas2, Ultra DDR333 |
Gigabyte
7VTXH+
1T cmd, Cas2 |
ABIT
KR7A
RAID CAS2, 1Tcmd,CPU
Fast Command decode Ultra |
EPoX
8KTA+ Cas2,1T
CMD |
Shuttle
AK31 v3.1
Peformance Defaults |
MSI
K7T266
Pro2-RU High Performance Defaults |
| CC
Winstone2000 |
48.7 |
49.5 |
50.2 |
49.7 |
49.8 |
49.1 |
48 |
48 |
46.2 |
| CPUMark99 |
- |
- |
- |
- |
- |
128 |
126 |
125 |
126 |
| FPUmark99 |
- |
- |
- |
- |
- |
7290 |
7300 |
7270 |
7290 |
| Business
Disk Winmark |
13000 |
12900 |
13100 |
13200 |
13330 |
6930 |
5660 |
7410 |
7190 |
| High
End Disk Winmark |
27500 |
27600 |
26800 |
27300 |
27400 |
23100 |
22500 |
25700 |
24400 |
| |
Iwill
XP333 v2.0 CAS2 Fast |
ECS
K7S6A Ultra timings |
Leadtek
7350KDA Ultra timings |
ECS
K7S5A Ultra timings |
| CC
Winstone2000 |
48.5 |
49.1 |
46.2 |
46.1 |
| CPUMark99 |
124 |
- |
125 |
123 |
| FPUmark99 |
7230 |
- |
7240 |
7260 |
| Business
Disk Winmark |
6790 |
7810 |
6260 |
8630 |
| High
End Disk Winmark |
23100 |
22400 |
20800 |
24800 |
FSB
MSI KT3 Ultra ARU = 133.34Mhz
Gigabyte 7VRXP = 133.9Mhz
ECS K7S6A = 133.9Mhz
Gigabyte 7VTXH+ = 134.2Mhz
ABIT KR7A RAID = 133.39Mhz
EPoX 8KHA+ = 133.64Mhz
Iwill XP333 = 132.68Mhz
Shuttle AK31 v3.1 = 133.5Mhz
MSI K7T266Pro2-RU = 133.8Mhz
Leadtek 7350KDA = 132.77Mhz
ECS K7S5A = 132.77Mhz
