MSI KT3 Ultra Gallery (2)
Overclocker 18 Feb 2002

The Mainboard

The mainboard has quite a number of features and that includes ATA-133 support, USB 2.0 and ATA-133 RAID using Promise controller. Below are pictures of the mainboard. JBT2 (white colour), next to the CNR Slot can be used to hook up to a bluetooth module for wireless operation.

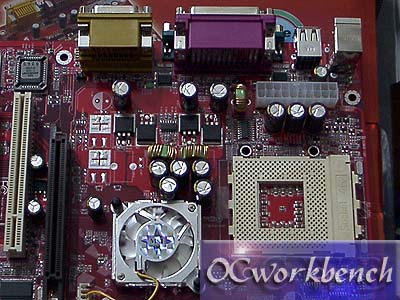

I feel that the positioning of the power connector is a bit out of place, would it be better if it's placed in front of the ram slots ?

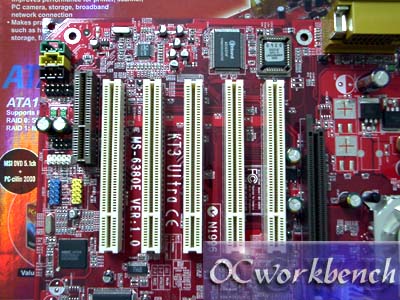

Over here we see the three most important chipsets. The NEC for supporting the USB 2.0, Promise PDC20276 chipset for ATA-133 RAID and VIA 8233A for ATA133 support. The two yellow coloured IDE connectors provided ATA-133 RAID.

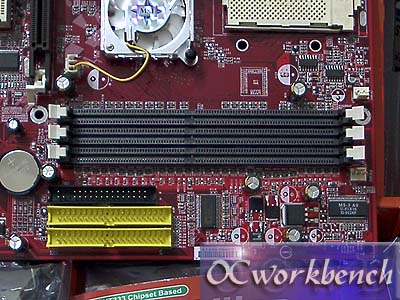

3 DDR slots are provided for a maximum memory capacity of 3GB. The 2 yellow IDE connectors are for ATA-133 Hard disks.
