MSI 845E Max2 (9)
Overclocker 21 May 2002

Benchmarking

Systems Compared

MSI 845E Max2
Intel Pentium 4 2.4G 533Mhz
512MB Winbond DDR333 DDR
ThermalTake heatsink/fan
Maxtor 40G ATA133 7200RPM
MSI Geforce3 Ti200 /Detonator 21.83
Windows 2000 + SP2
Intel Application Accelerator

Intel D850EMD2 i850E mainboard
Intel Pentium 4 2.4G 533Mhz
512MB PC-800 RAMBUS
ThermalTake heatsink/fan
Maxtor 40G ATA133 7200RPM
MSI Geforce3 Ti200 /Detonator 21.83
Windows 2000 + SP2
Intel Application Accelerator

ASUS P4S533 SiS645DX mainboard
Intel Pentium 4 2.4G 533Mhz
512MB Winbond DDR333 DDR
ThermalTake heatsink/fan
Maxtor 40G ATA133 7200RPM
MSI Geforce3 Ti200 /Detonator 21.83
Windows 2000 + SP2
SiS1.09 AGP driver

The following tests are run at least 3 times to obtain a sustain score. MSI 845E Max2 is set to run at the best timings of CAS 2, DDR266, 2-2-5.

1) Best timings at CAS 2, 1T, DDR333, 2-2-2-4 RAM timings to reach the best speed. (async timing)
2) Turbo timings at CAS 2.5, 2T, DDR266, 3-3-3-6 RAM timings. (sync timing)

All above setup are set to operate with an AGP aperture size of 128MB so that consistent results can be used for comparison purposes.

Benchmark Tests Run

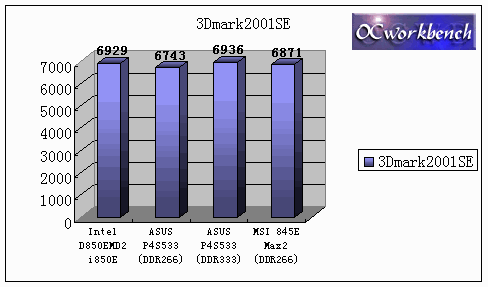

3DMark2001SE

The well known test for Direct3D with DirectX8.1 installed. The results are very obvious. The i850E is way ahead of the SiS645DX under normal timings e.g. CAS 2.5, 3-3-3-6. MSI 845E performs in between the RAMBUS and the SiS645DX P4 platforms. It looks like the current drivers are definitely not fully optimised for graphics yet.
