MSI 845E Max2 (4)
Overclocker 21 May 2002

Benchmarking

Systems Compared

The following tests are run at least 3 times to obtain a sustain score. MSI 845E Max2 is set to run at the best timings of CAS 2, DDR266, 2-2-5.

1) Best timings at CAS 2, 1T, DDR333, 2-2-2-4 RAM timings to reach the best speed. (async timing)
2) Turbo timings at CAS 2.5, 2T, DDR266, 3-3-3-6 RAM timings. (sync timing)

All above setup are set to operate with an AGP aperture size of 128MB so that consistent results can be used for comparison purposes.

Benchmark Tests Run

ZD Content Creation 2002

Content Creation Winstone is a system-level, application-based benchmark that measures a PC's overall performance when running top, Windows-based, 32-bit, content creation applications on Windows 98, Windows 2000, Windows Me, or Windows XP. Content Creation Winstone 2002 uses the following applications:

• Adobe Photoshop 6.0.1
• Adobe Premiere 6.0
• Macromedia Director 8.5
• Macromedia Dreamweaver UltraDev 4
• Microsoft Windows Media Encoder 7.01.00.3055
• Netscape Navigator 6/6.01
• Sonic Foundry Sound Forge 5.0c (build 184)

Following the lead of real users, Content Creation Winstone 2002 keeps multiple applications open at once and switches among those applications. Content Creation Winstone 2002 is a single large test that runs the above applications through a series of scripted activities and returns a single score. Those activities focus on what we call "hot spots," periods of activity that make your PC really work--the times where you're likely to see an hourglass or a progress bar.

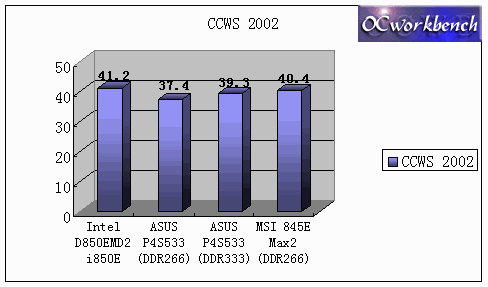

We have some pretty interesting results over here. The i845E MSI 845E Max2 seems to perform very well under Content Creation. This could be due to the fact that the disk performance is increased with the fast disk access. CCWS is very dependent on disk access speeds.
