MSI 845E Max 2 Gallery (3)
Overclocker 21 May 2002

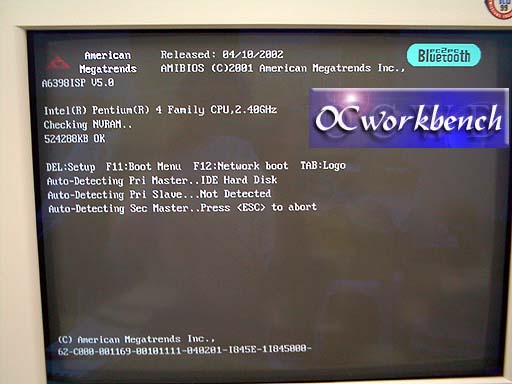

The Boot up Screen showing it has built in PC2PC Bluetooth capability.

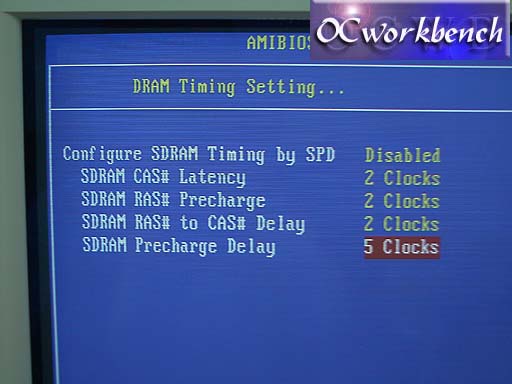

We disabled the SPD configuration but set the system to run at DDR266, CAS 2, 2-2-5 as the diagram below. This is the top timings available on this BIOS.

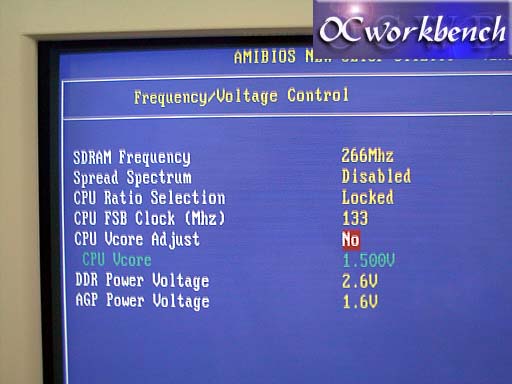

If you intend to overclock the system, there are options which allows you to do that. SDRAM Frequency is where you could want to set the system to run async or sync CPU/RAM.

FSB is adjustable from 100 ~ 233 Mhz at 1Mhz stepping

CPU Vcore from 1.50 ~ 1.80v at 0.025v intervals

DDR power voltage 2.5 ~ 2.8v at 0.1v intervals

AGP power voltage 1.5 ~ 1.8v at 0.1v intervals
