MSI 845E Max 2 Gallery (1)
Overclocker 21 May 2002

MSI has really put in lots of time and effort in designing a well packaged product. On first sight, you would have probably fall in love with it.

At the back of the box are the functionalities of this mainboard. USB 2.0, ATA133 RAID, LAN, Bluetooth PC2PC,

D-Bracket 2.0
- MSI™ exclusive D-LED (Diagnostic LEDs), understand your system!
- 2 extra USB 2.0 connection (USB 2.0 chipset support is required),

S-Bracket (2 SPDIF jacks for digital audio transmission and 2 analog line-out connectors for additional 4-channel audio output Offers 2 types of SPDIF connectors; Optical fiber and Coaxial), 6 Ch Audio, DDR266 support, Fuzzy Logic 4, Live Update 2. It is feature packed!

The Microstar Hologram. 845E Max2-BLR, B-bluetooth, L-LAN, R-ATA 133 RAID

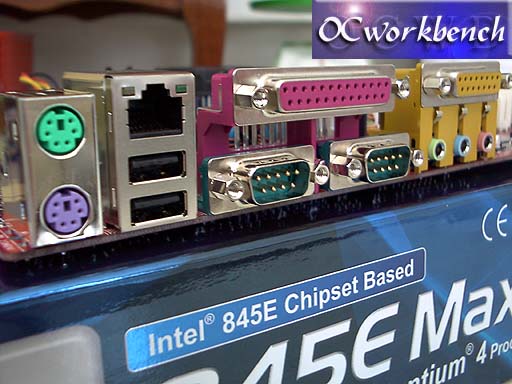

The back plate connectors including the LAN port, PS/2 keyboard, mouse, serial ports, parallel, audio in/out, line out.
