Gigabyte AP128DG-H ATi Radeon8500 128MB Review (4)
Overclocker 24 Jul 2002

Benchmarking

We conduct the a number of tests on the setup with the following configuration :

Test System:

• Intel Pentium 4 2.4B
• Shuttle AS45GTR SiS 648 mainboard running DDR333 Async mode CAS 2, 2-2-5
• Maxtor D740X-6L ATA133 7200RPM
• AOPEN 40X CDROM
• Gigabyte AP128DG-H with default drivers from CDROM 5.13.1.6043
• Winbond 512MB DDR333 module
• Channelwell 375W AMD Approved PSU

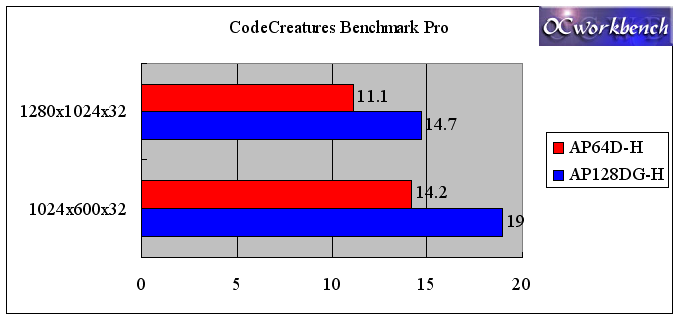

Code Creatures Benchmark Pro

This is a new benchmark which we start to use recently. Being one of the most graphics intensive software developed. As you can see we are only able to obtain less than 20 fps in both tests using both cards.

Again, we see a gain of around 33% in performance when we use a 128M card versus the 64M equivalent.
