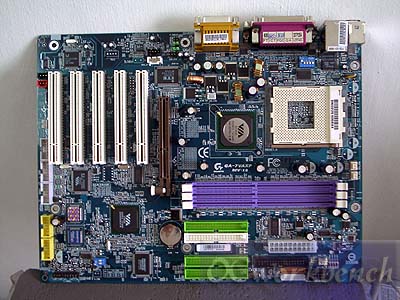

GA-7VAXP
VIA KT400+8235
chipset |
PROCESSOR
|
 |
Socket A for AMD Athlon™
XP / Athlon™ / Duron™ processor |
CHIPSET
 |
|
Northbridge : VIA KT400 |
|
Southbridge : VIA 8235 |
|
VIA V-Link architecture
(266MB/s) |
|
VIA VT6306 IEEE1394 controller |
|
Super I/O : ITE IT8705F |
|
Smart I/O : Winbond Smart@IO |
|
Promise PDC20276 ATA 133 RAID
controller |
|
Realtek 8100BL Ethernet
10/100Mb LAN controller |
|
AC97 Realtek ALC650 6-channel
sound Chip |
|
Dual BIOS |
MEMORY  |
|
Type : DDR400(PC3200) / DDR333
(PC2700) / DDR266 (PC2100) / DDR200 (PC1600) -184pin |
|
Max capacity : Up to 3GB by 3
DIMM slots |
CONNECTOR  |
|
1 x AGP universal slot
(8X/4X/2X-AGP 2.0 compliant) |
|
5 x PCI slots (PCI 2.2
compliant) |
|
1 x FDD port |
|
4 x UDMA ATA133/100/66 Bus
Master IDE ports |
|
3 x IEEE 1394 connectors |
|
2 x 2ports USB 2.0 connector
(by front USB ports) |
|
1 x 2ports USB 2.0 connector
(by cable with rear USB bracket) |
|
Memory Stick / Security Digital
(MMC) / Smart Card Reader connectors |
|
2 x cooling fan pin header |
REAR PANEL |
|
PS/2 Keyboard / Mouse |
|
2 x USB 2.0 ports |
|
2 x COM ports |
|
1 x RJ45 LAN port |
|
Audio (1 x Line-in / 1 x
Line-out / 1 x Mic) connector |
|
1 x joystick |
|
|
CPU SETTING |
|
CPU FSB adjustable via BIOS
(1MHz-linear) |
|
CPU multiplier by DIP
Switch |
|
CPU Vcore Voltage
adjustable via BIOS |
|
AGP Voltage : N/A |
|
Memory Voltage : N/A |
|
|
BUNDLE SOFTWARE
  |
|
@BIOS™,
EasyTune™ 4, Q-Flash™, GMC™ |
|
Symantec Norton
AntiVirus (Internet Security 2002) OEM Ver. |
|
Symantec Norton
Personal Firewall OEM Ver. |
|
|
H/W MONITORING |
|
System health
status auto-detect and report by BIOS |
|
H/W detect and
report power-in voltage, CPU voltage, and Fan Speed Support
auto detect temperature thermal shutdown function |
|
|
POWER |
|
ATX power
connector |
|
Power-off by
Windows 95/ 98/ Me/ 2000/ NT/ XP shut down and Switch |
|
|
BIOS |
|
2Mbit flash
RAM |
|
AMI BIOS
with enhanced ACPI feature for PC98/Win98/Win2000/WinMe/XP
compliance, Green, PnP, DMI, INT13 (>8.4GB) and
Anti-Virus functions |
|
IDE#1~#4,
SCSI, LS120, ZIP and CD-ROM bootable |
|
AC recovery
ON/OFF control |
|
|
FORM
FACTOR |
|
ATX,
Dimension : ( 23.5 x 30.4 cm ) |
OTHER
FEATURES  |
|
GIGABYTE
patented DualBIOS™ |
|
Suspend-To-RAM
(STR) |
|
Supports
USB KB/MS Wake up from S3 |
|
Poly
fuse for keyboard over-current protection |
DRIVER |
|
VIA 4
in 1 service pack utility |
|
Promise
RAID controller driver ( includes pure ATA133
driver ) |
|
Realtek
LAN driver |
|
Realtek
sound driver |
|
VIA USB
2.0 driver |
|
Winbond
Smart IO driver |
|
Free
software |
