EPoX 4G4A+ Gallery (4)
Overclocker 20 May 2002

BIOS

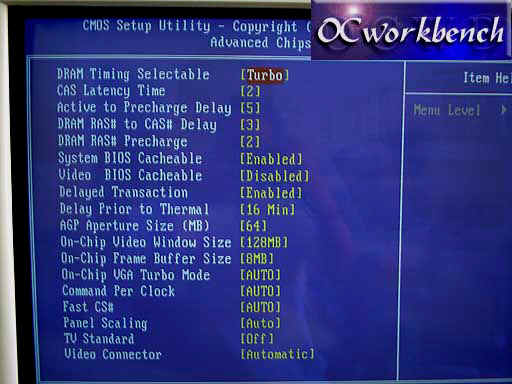

In our tests, we set DRAM timing to Turbo, 2-5-3-2. The rest of the setting are as follows :

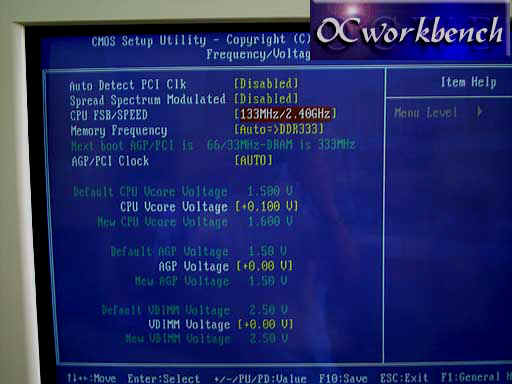

The most important page which sets the CPU/FSB and memory type.
FSB 90 ~ 200 Mhz at 1Mhz stepping
Memory Frequency : 4:3 (DDR200), 1:1 (DDR266), 4:5 (DDR333)

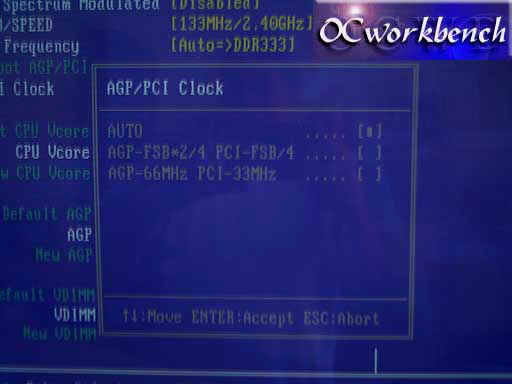

AGP Clk : Auto, AGP-66, PCI-33 (fix), AGP - FSB*2/4 PCI-FSB/4
CPU Vcore : -0.1v ~ +0.35v at 0.025v intervals
AGP voltage : 0 ~ +0.4v
VDIMM : 0 ~ +0.7v
