ECS L7VTA KT400 Mainboard Gallery (4)
Overclocker 18 Sept 2002

BIOS Screen shot

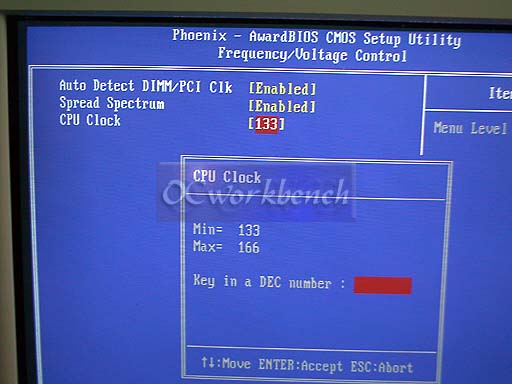

We all know that ECS has never made FSB available in 1Mhz steppings. It is a surprise to see that 1Mhz stepping did make it's way onto ECS L7VTA. When we set the jumper to 133, we get 1mhz FSB stepping selectable from 133 ~ 166. As there is no multiplier control available on board and my CPU can't boot up at 166Mhz (when jumper is set to 166Mhz), I am not sure what is the maximum FSB this board can handle. There are no voltage controls available on this board.

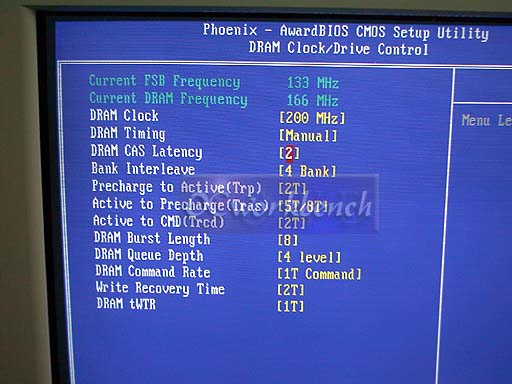

This screen should be familiar to those who loves to tweak their system to max. performance. DRAM Clock is selectable from 133, 166 and 200 Async mode. In our test, we set Bank Interleave to 4 Bank, CAS 2, Ram timings 2-5-2, DRAM Burst = 8, Queue Length = 4 level. 1T cmd
