ECS L4S5A Review (2)
Overclocker 22 Mar 2001
Benchmarking
We conduct the usual tests on the setup with
the following configuration :
Test System:
- Intel Pentium 4 ES 1.5Ghz
- ThermalTake heatsink/fan
- IBM 13.5GB 7200 RPM HD
- MSI Geforce3 Ti200
- 256MB Nanya DDR333 DDR CAS 2.5
- IBM 20G ATA100 HD
In our tests, we set the RAM at CAS2 Ultra

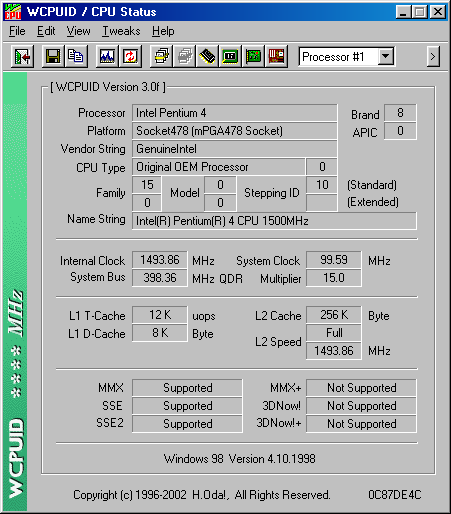

timings and run the system under 200/333 mode. The following screen shots the WCPUID of
the frequency of the FSB. The BIOS we used is ver 1.0c posted on ECS website.
ZD Winbench99 and CC
Winstone2000
Summary
|
ECS
L4S5A (SiS645 DDR333) |
ABIT
SD7-533r (SiS645 DDR200
/266) |
ABIT
SD7-533 (SiS645 DDR200
/333) |
MSI
645Ultr (SiS645 DDR200
/266) |
MSI645
Ultra
(SiS645 DDR200
/333) |
ECS
P4S5A (SiS645 DDR) 200/266 |
ECS
P4S5A (SiS645 DDR) 200/333 |
SiS645
Ref Board 200/266 |
SiS645
Ref Board 200/333 |
| Business
Disk Winmark 99 |
7790 |
5760 |
5520 |
6690 |
5950 |
5520 |
5890 |
5600 |
5840 |
| High
End Disk Winmark 99 |
21900 |
20100 |
19100 |
19700 |
19800 |
20100 |
18900 |
22000 |
19600 |
| CPUMark99 |
- |
- |
- |
92.7 |
92.8 |
90.7 |
92.6 |
90.3 |
93.3 |
| FPUMark99 |
- |
- |
- |
5200 |
5170 |
5170 |
5160 |
5220 |
5210 |
| CC
Winstone2000 |
39.5 |
39.6 |
41.8 |
40.1 |
39.2 |
39.1 |
39.5 |
40.7 |
41.8 |
Excellent disk performance scores. In terms of
CC Winstone2000, it is still a bit slower than the reference board. It is
slightly faster than MSI 645Ultra (DDR333). Could it be because the BIOS is not
optimised well enough. I guess so.
|
MSI
845
Ultra
DDR
200/266 |
ABIT
BD7 RAID (i845
DDR 200/266 |
DFI
NB70-
SC (i845
DDR 200/266 |
ALi
ALADDiN
P4 DDR Ref DDR200
/266 |
Shuttle
AV40R (p4x266 ddr) 200/266 |
2theMax
EP-4B2A (i845 + SDR) 100/133 |
ABIT
TH7 II-RAID (i850 + RAMBUS) 100/133 |
| Business
Disk Winmark 99 |
5960 |
5880 |
6220 |
11100 |
5370 |
5590 |
6280 |
| High
End Disk Winmark 99 |
20900 |
21300 |
22200 |
25600 |
19700 |
20100 |
20800 |
| CPUMark99 |
- |
- |
- |
91.9 |
92.5 |
89.1 |
92.1 |
| FPUMark99 |
- |
- |
- |
5190 |
5220 |
5210 |
5160 |
| CC
Winstone2000 |
42.1 |
41.5 |
42.4 |
40 |
37.5 |
36.6 |
38.5 |
If we were to compare the results of the SIS645
boards versus the Intel 845D, we can see that in Content Creation category, when
the Sis645 runs in DDR333 mode, it is still behind i845D counterpart. If you
were to compare neck to neck at DDR266, the i845D is a better performer.
FSB
ECS L4S5A = 99.59Mhz (200/333)
ABIT SD7-533 = 100.9Mhz (200/266), 99.75
(200/333)
ALi ALADDiNP4 Ref = 100.00Mhz
MSI 645Ultra = 100.7Mhz (200/266), 100.1Mhz (200/333)
ECS P4S5A = 100.00Mhz
SiS645 Ref = 100.67 (200/266), 100.9 (200/333)
Shuttle AV40R = 101.25Mhz
2themax EP-4B2A = 101.0Mhz
ABIT TH7-II RAID = 100.00Mhz
DFI NB70-SC = 100.2Mhz
ABIT BD7-RAID = 100.0Mhz
MSI 845Ultra = 100.94Mhz
