USB Header Guide

Updated 05/11/02 by Tim B @ OCWorkbench.com

Warning Incorrect connection of the usb header may result in damage to the boards USB header.

See this link for the K7S5A USB header pin out.
http://www.ecsusa.com/usbk7s5a.cfm

Original Thread.
http://www.ocworkbench.com/ocwbcgi/ultimatebb.cgi?ubb=get_topic&f=27&t=002820

Related Links.
http://forum.ocworkbench.com/ocwbcgi/ultimatebb.cgi?ubb=get_topic&f=27&t=002762
http://www.ocworkbench.com/ocwbcgi/ultimatebb.cgi?ubb=get_topic&f=27&t=001051
http://www.usbman.com/Guides/BelkinMotherboard_cable_assembly.htm
http://forum.ocworkbench.com/ocwbcgi/ultimatebb.cgi?ubb=get_topic&f=4&t=002018

ECS USA

By Fineous

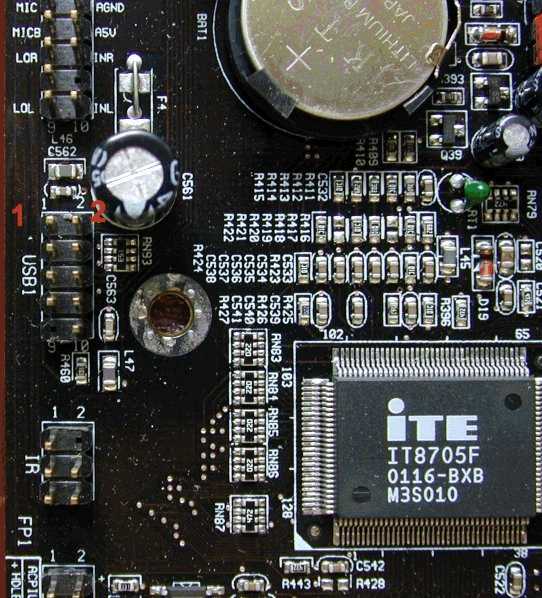

Pin arrangement of front USB on k7s5a:
(towards back of case)

1 ___ 2
3 ___ 4
5 ___ 6
7 ___ 8
9 ___ 10

(towards front of case)

USB header pin out for K7S5A

Signal name __________ pin
VREG_FP_USBPWR0 ______ 1
VREG_FP_USBPWR0 ______ 2
USB_FP_P0- ___________ 3
USB_FP_P1- ___________ 4
USB_FP_P0+ ___________ 5
USB_FP_P1+ ___________ 6
GROUND _______________ 7
GROUND _______________ 8
KEY __________________ 9
USB_FP_OC0 ___________ 10

From the ECS K7S5A FAQ

The K7S5A has a header for connecting two extra USB ports, but you need to buy an extra cable. The cable should have two USB ports on one end and a motherboard connector on the other. You also need to know what each pin connects to:

1 --- 2 Red (+ 5V)
3 --- 4 White ( -- Data)
5 --- 6 Green ( + Data)
7 --- 8 Black/Gray (Ground)
9 --- Black/Gray (Ground) or not connected
