DFI NB73-EA i845E Gallery (1)
Overclocker 20 May 2002

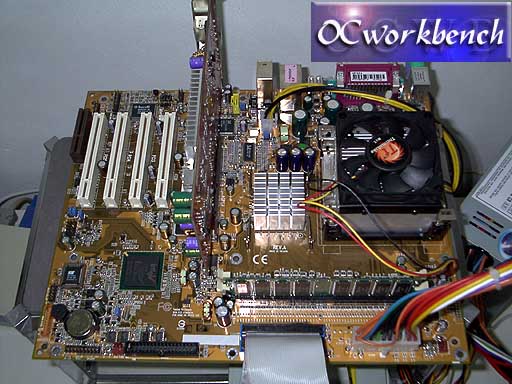

The Mainboard

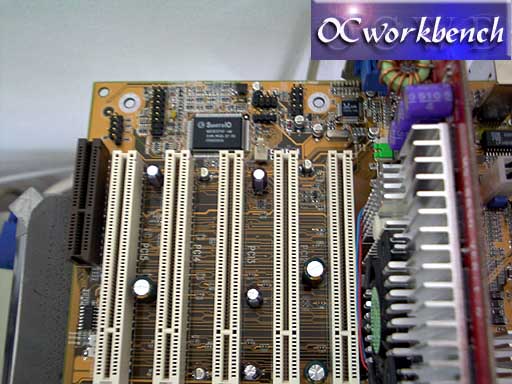

CNR, 5 PCI and AGP Slot

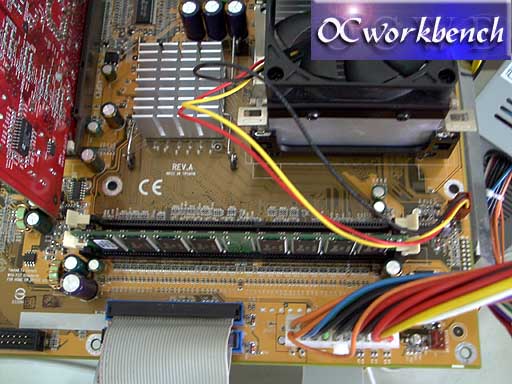

Intel 82845E Memory Controller Hub beside the CPU socket

2 DIMM Slots for DDR266 module.

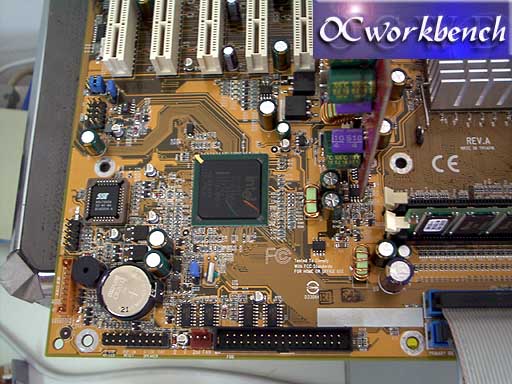

Intel ICH4 south bridge at the centre. On the left hand corner is the brown connector for connecting the Memory stick/Smart card reader

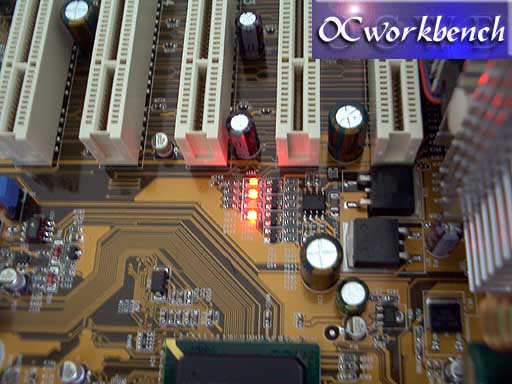

You no longer need to pay for high price for this feature. Diagnostic LED makes it debut on DFI board. This is a useful feature for detecting system problems. DFI call their innovation the BitGuard. BitGuard also provides CPU/AGP protection circuits which protects CPU from overheating or exceed voltage. It also detects and alerts the user by lighting up the LED next to AGP Slot when there is improper AGP 3.3v or no AGP card
