Chaintech 7VJL KT333 gallery (2)
Overclocker 3 Jul 2002

The Mainboard

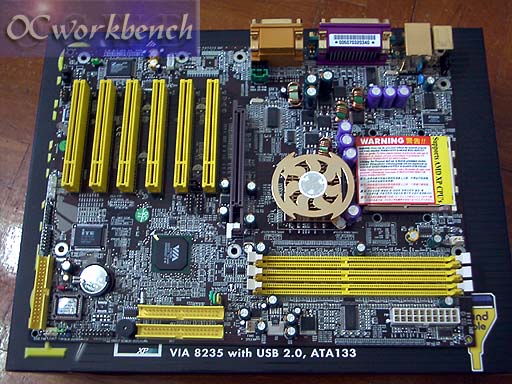

Chaintech adopted a colour scheme for their mainboards. Yellow slots - AMD based. Green Slots - Intel Based system to differentiate between the boards.

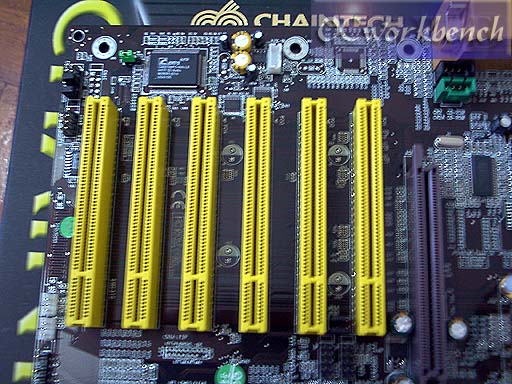

6 PCI , 1 AGP. CMEDIA CMI 8738 6 ch chipset is used.

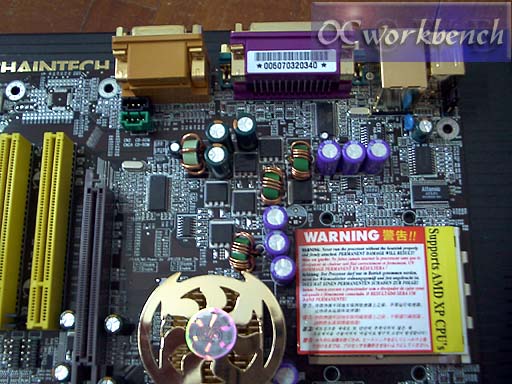

Looks like Chaintech adopted something similar to most board design to regulate the voltage. LAN port is next to the keyboard connector supported by the VT6103 chipset.

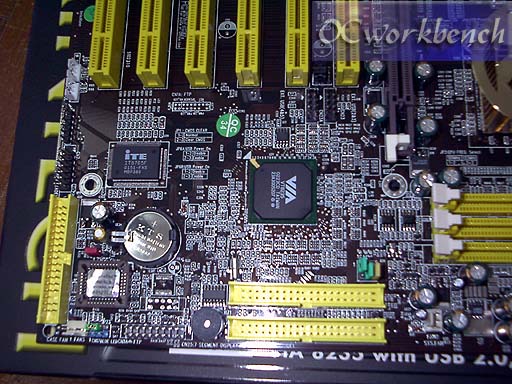

VIA 8235 South Bridge. 2 channels of ATA133 supporting up to 4 ATAPI devices.

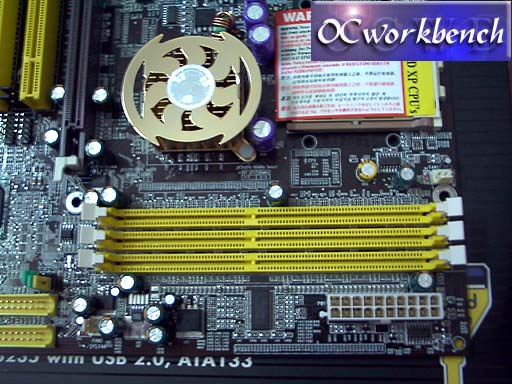

3 184 pin DDR DIMMs up to 3GB supporting PC1600/2100/2700 DDR RAM module.
