ASUS P4T533 i850E Gallery (3)
Overclocker 19 June 2002

BIOS screen shots

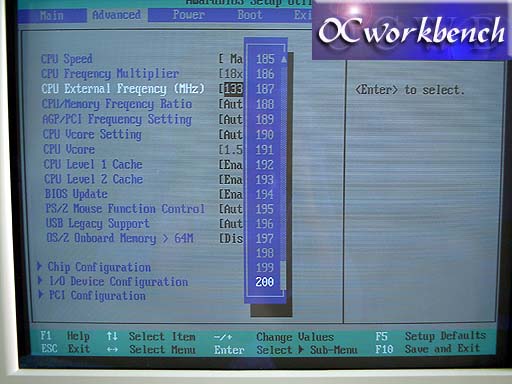

A 1Mhz fsb stepping from 100 ~ 200 is available for overclocking your system.

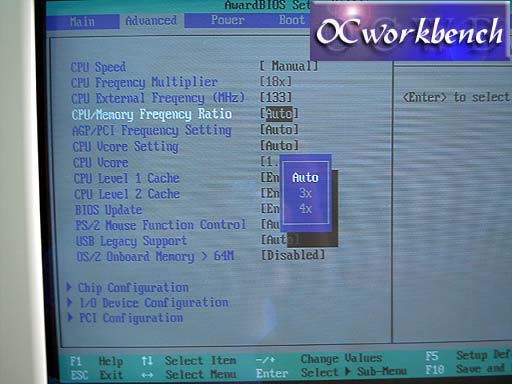

The CPU/Memory Frequency is selectable of 3x and 4x. It is possible to select it at 3x so that the memory module can be overclocked to higher fsb.

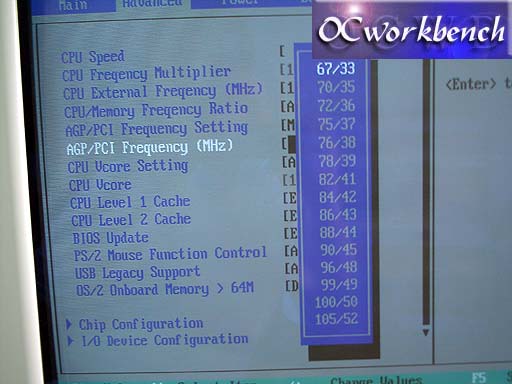

Another overclocking feature of the board. You can set the AGP/PCI frequency. This looks like it is independent of the FSB of your CPU.

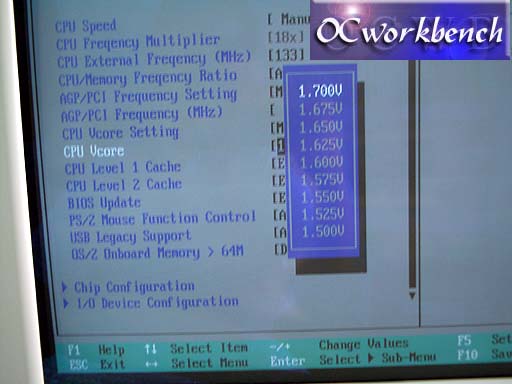

CPU Vcore can be set from 1.500v to 1.700v at 0.025v intervals.

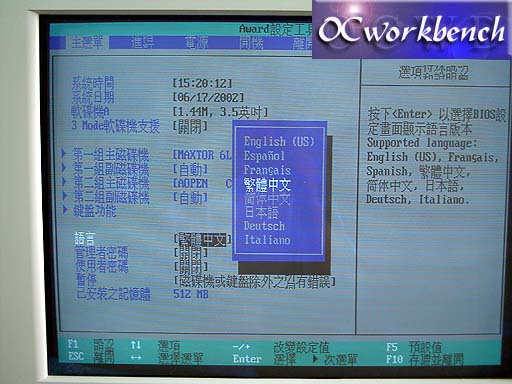

Multilanguage BIOS is becoming a standard. You can select English, Spanish, French, Chinese Traditional, Chinese Simplified, Japanese, Dutch and Italian.
