ASUS P4S8X SiS648 Mainboard Gallery (1)
Overclocker 23 Aug 2002

The Mainboard

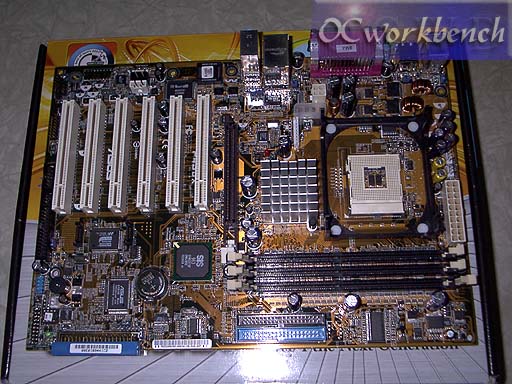

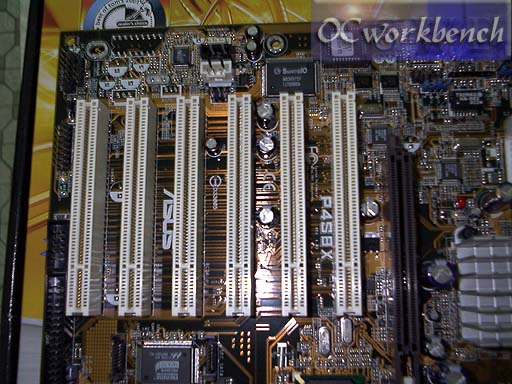

6 PCI, 1 AGP slot. Cmedia 6 Channel audio.

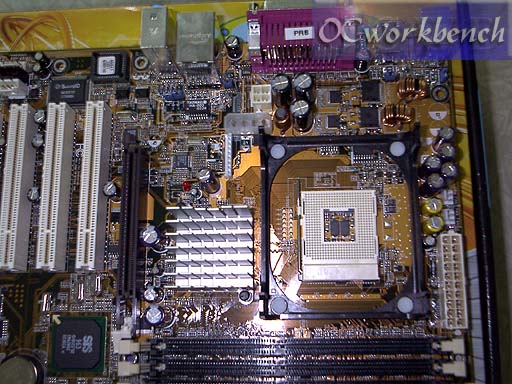

If you don't own a ATX 2.03 spec PSU, you can still use this mainboard as the feature EZ-plug allows you to use the conventional ATX 2.01 PSU and plug the 4 pin connector usually meant for HD/CDROM drivers instead of the newer ATX 2.03 spec squared connector.

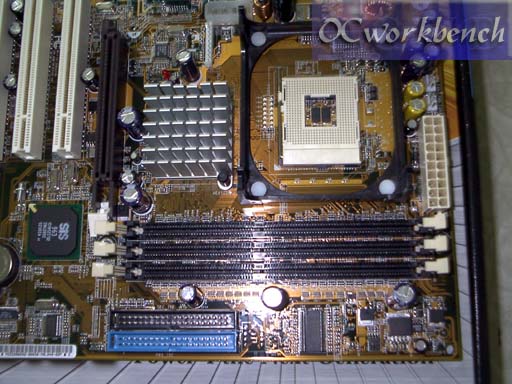

3 DDR DIMM Slots are available for expandability. 2 IDE channels are provided in additional to the S-ATA connector on the left hand bottom corner of the mainboard.

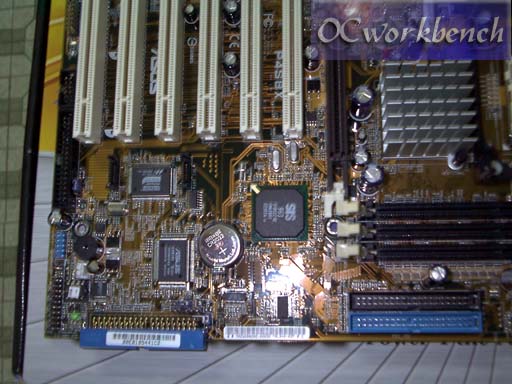

South Bridge 963 A2 stepping and the Promise chipset. On the left are the floppy connector and USB connectors
