ASUS P4S533 SiS645DX Gallery (3)
Overclocker 10 Apr 2002

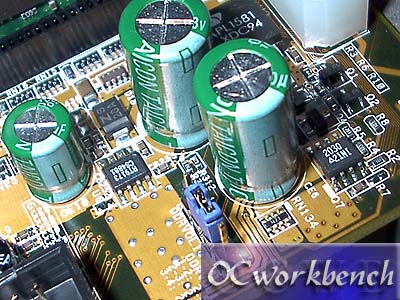

DDR Voltage jumper allows selections of 2.5v, 2.6v or 2.7v. There is a jumper on the right hand corner of the PCB which allows Vcore to be upped by 0.2v.

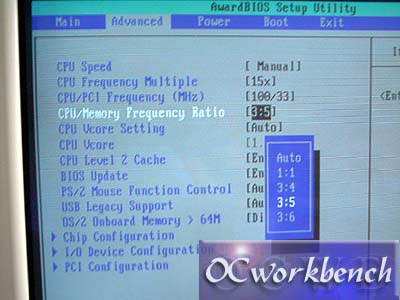

The BIOS has the option to run the CPU/Memory at various options. 3:4 means async 100/133 (DDR266), 3:5 = async 100/166 (DDR333), 3:6 = async 100/200. The CPU/PCI Frequency can be adjusted at 1Mhz steppings from 100 ~ 166.

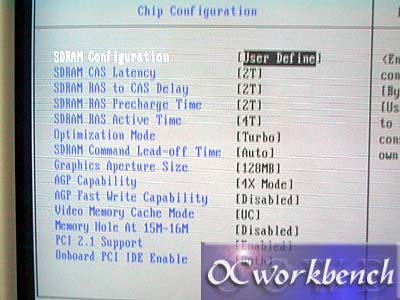

SDRAM configuration allows RAM timings to be set. In our test, we are able to run at 100/166 (DDR333), 133/166(DDR333) using a P4 1.5ES using the aggressive timings of 2-2-2-4-Turbo. RAM module used is 512MB WinBond DDR333 module. AGP Aperture size is set to 128MB.
