ASUS P4G8X Dual DDR Mainboard Gallery (4)
Overclocker 13 Nov 2002

BIOS Screen shots

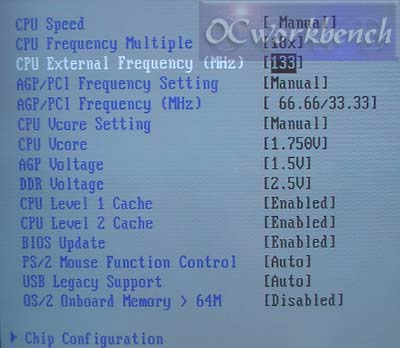

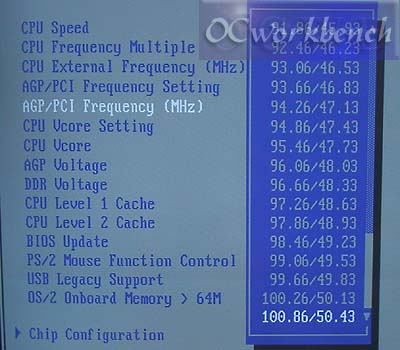

ASUS P4G8X does provide a wide variety of settings for you to tweak. Firstly it has a 1mhz stepping of FSB from 100 ~ 200. Another good news is that the AGP/PCI Frequency is independent of the FSB. You can clock the AGP from 66 to 100Mhz, with the corresponding increase in PCI bus speed.

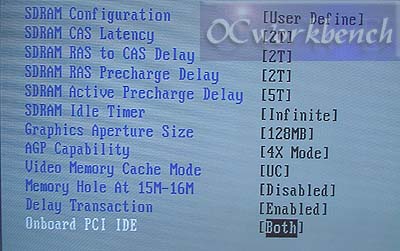

Ram timings plays an important role in the stability of the system. IN our test environment, we ran our DDR333 module (in DDR266 mode since there is no async memory setting) at CAS 2, 2-2-5, AGP is set to 128M.

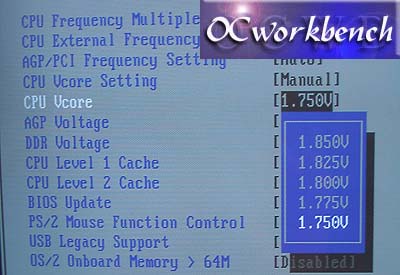

Voltage tweaks, CPU Vcore is selectable up to 1.850v

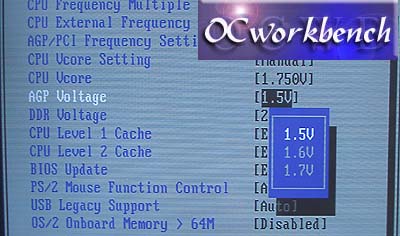

AGP from 1.5 ~ 1.7v at 0.1v interval

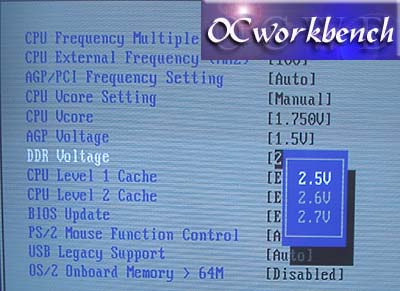

DDR Voltage from 2.5v ~ 2.7v at 0.1v interval

Next
