ASUS P4G8X Dual DDR P4 Mainboard Gallery (1)
Overclocker 13 Nov 2002

The Mainboard

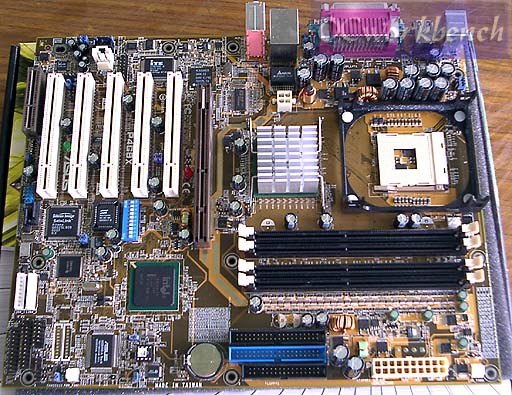

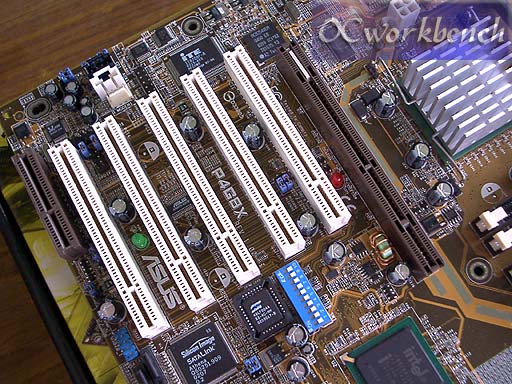

5 PCI, 1 AGP Pro Slot. Right behind the AGP Pro slot is the Intel 8254 chipset which supports the Gigabit Ethernet.

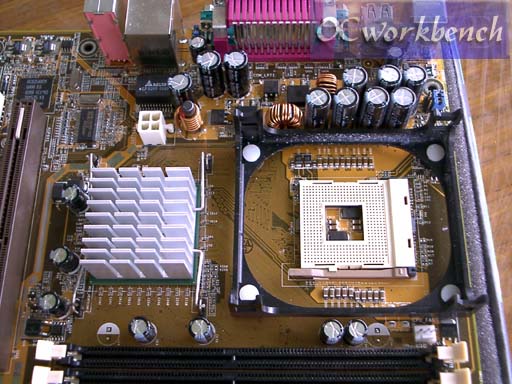

The North Bridge and the P4 Socket 478

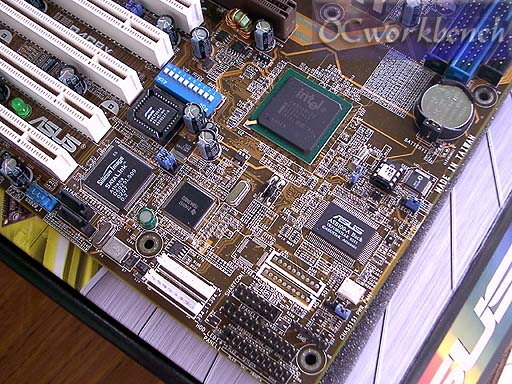

Silicon Image S-ATA chipset with 2 S-ATA connectors. The firewire ports on the left rear of the board. The South Bridge.

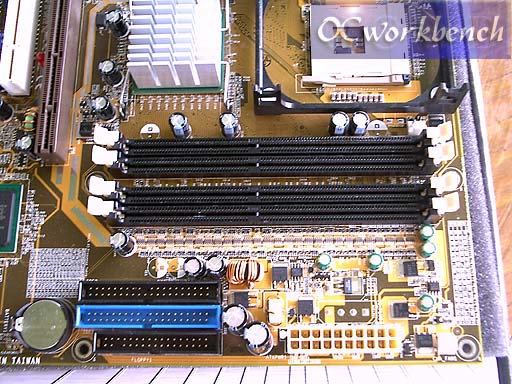

Dual DDR support. RAM used must be in pairs. From top to bottom DDR1, 3 followed by 2, 4. Different manufacturers would adopt a different layout. It is advisable to install two pieces of ram of the same brand, ram timings. Although DDR333 modules can be installed, it will only function in Sync DDR266 mode.

* This board is an early retail sample, retail board might look slightly different with colour coded DIMM slots etc.

Next
