ASUS P4B533-E i845E Gallery (2)
Overclocker 20 May 2002

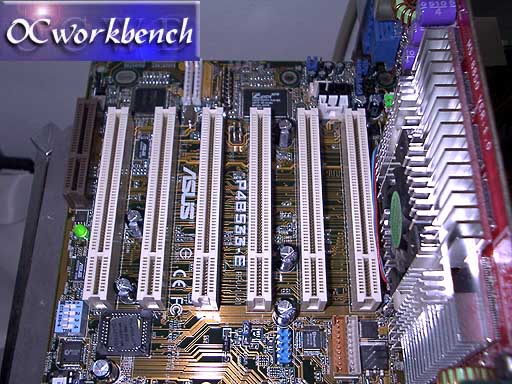

1 CNR, 6 PCI, 1 AGP. Right below the PCI Slot 1 and 2 are the MS/SC connectors

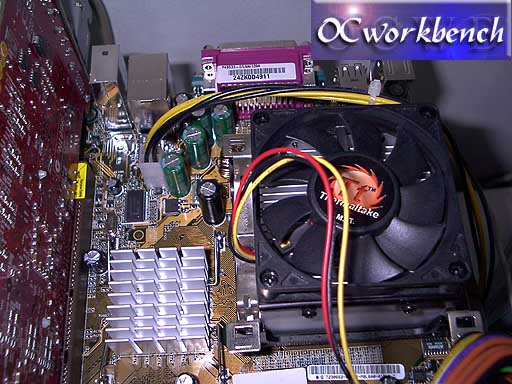

Huge silver heatsink on top of the MCH 82845E

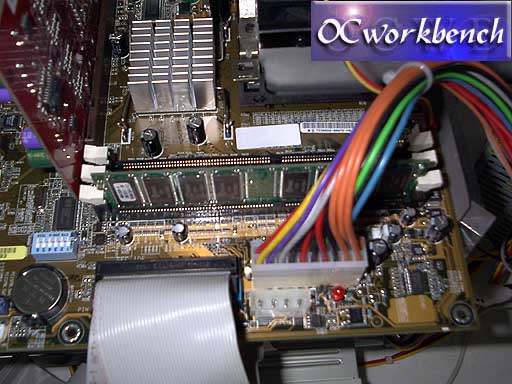

3 DIMM Slots for DDR266. The switch on the left can be set to manual adjustment of the FSB or Jumperless mode (sets everything from BIOS).

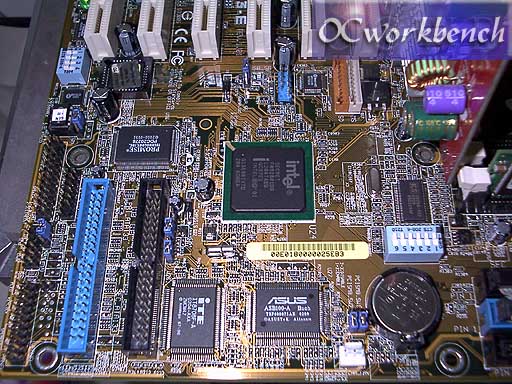

On the left are the two IDE connectors for ATA-133 RAID supported by the Promise chipset
