ASUS A7V8X KT400 Gallery (3)
Overclocker 16 Aug 2002

BIOS Screens

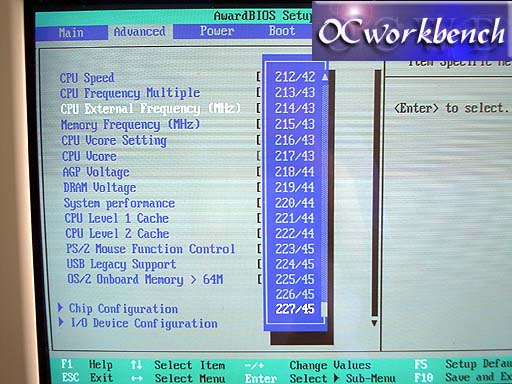

FSB is selectable at 1Mhz stepping from 100Mhz ~ 227Mhz. On this page, you could also set the CPU Vcore Settings, AGP, DRAM Voltage. System Performance is set to Turbo.

CPU Vcore : up to 1.85v at 0.025v interval
AGP Voltage : 1.5 ~ 1.8v at 0.1v interval
DRAM Voltage : 2.55, 2.65, 2.75, 2.85

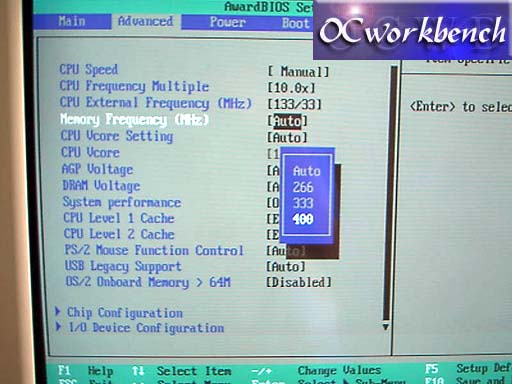

Memory Frequency allows you to run the Async mode where memory CPU is at 133 and the DDR at 266, 333 or 400. DDR400 is here although KT400 does not officially supports it.

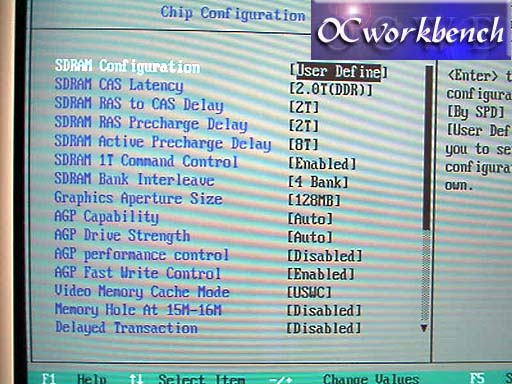

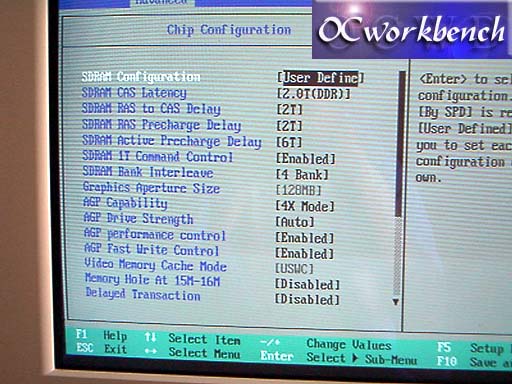

If we set it at DDR400 for Async memory, the ram timings can be set to the fastest at only CAS 2, 2-2-8. At DDR333 Async mode, it can be set to CAS 2, 2-2-6. The rest of the settings are Bank interleaving of 4 Bank, AGP Aperture Size 128M, 1T cmd enabled.
