ASUS A7N8X nForce2 Mainboard Gallery (2)
Overclocker 27 Oct 2002

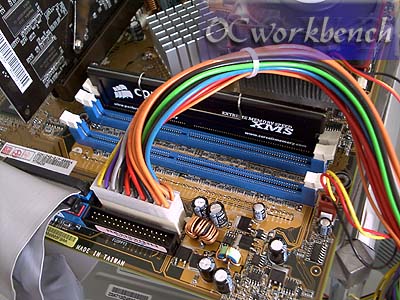

3 DDR Slots supporting DDR200/266/333/400 modules. If you want to take advantage the Dual Channel DDR, just ensure that have one DDR in the black slot and the other in the blue. Two ATA133 IDE connectors are on board for supporting ata/133 devices.

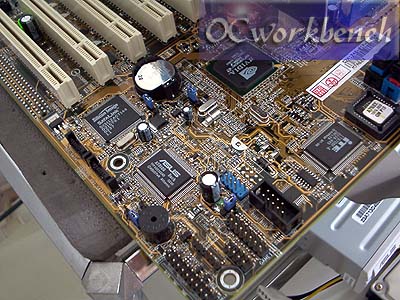

A pretty cramp mainboard with most of the chipsets scattered around the left bottom corner of the mainboard. On board are the front panel connectors, SATA connectors, USB connectors, the nVIDIA MCP-T chipset.

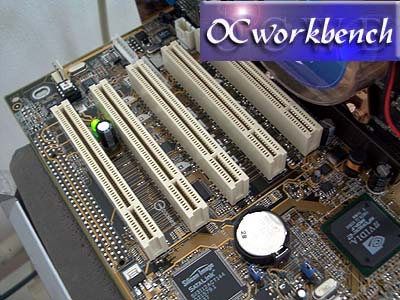

5 PCI for your PCI devices and a AGP Pro 8x slot for your AGP 8x card

The SPP chipset with a heatink that is stuck on top of it with thermal tape
