ABIT SD7-533 (4)
Overclocker 8 Feb 2002
Benchmarking
We conduct the usual tests on the setup with
the following configuration :
Test System:
- Intel Pentium 4 ES 1.5Ghz
- Thermaltake heatink/fan
- IBM 13.5GB 7200 RPM HD
- MSI Geforce Ti200
- 256MB Nanya DDR333 DDR CAS 2.5
- IBM 20G ATA-133 HD
3DMark2001
DDR200/266
DDR200/333
|
ABIT
SD7-533 DDR 200/266 |
ABIT
SD7-533 DDR200
/333 |
MSI
645Ultra DDR 200/266 |
MSI
645Ultra DDR200
/333 |
ECS
P4S5A (SiS645 DDR) 200/266 |
ECS
P4S5A (SiS645 DDR) 200/333 |
SiS645
Ref Board 200/266 |
SiS645
Ref Board 200/333 |
| 3DMark2001 |
5984 |
6042 |
5964 |
6023 |
5733 |
- |
5960 |
6102 |
|
MSI 845 Ultra (i845
DDR 200/266 |
ABIT BD7 RAID (i845
DDR 200/266 |
DFI
NB70-
SC (i845
DDR 200/266 |
ALi
ALADDiN P4 DDR 200/266 |
Shuttle
AV40R (p4x266 ddr) 200/266 |
2theMax
EP-4B2A (i845 + SDR) 100/133 |
ABIT
TH7 II-RAID (i850 + RAMBUS) 100/133 |
| 3DMark2001 |
6012 |
5997 |
5957 |
5901 |
5921 |
- |
5971 |
* new bios of ecs p4s5a has no
100/166 option
Summary

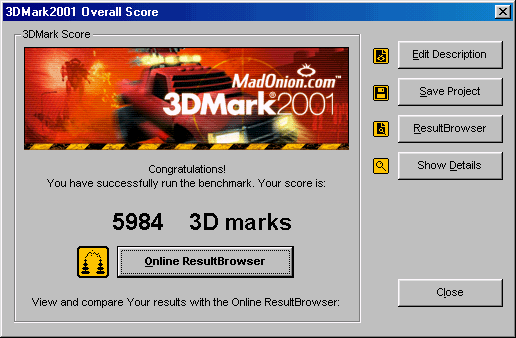

At DDR266, the SiS645 based ABIT SD7-533
performs almost the same as the Intel 845 counterpart. Based on the results obtained of
5984 3Dmarks,
it overtook the TH7-II RAID with RAMBUS. In fact, the result of 6042 (DDR333) is
the highest among all the boards tested so far. Looks like ABIT has produced a
winner. It is even faster than the reference board.
FSB
ABIT SD7-533 = 100.9Mhz (200/266), 99.75
(200/333)
ALi ALADDiN P4 Ref = 100.00Mhz (200/266)
MSI 645Ultra = 100.7Mhz (200/266), 100.1Mhz (200/333)
ECS P4S5A = 100.00Mhz
Sis645 Ref = 100.67 (200/266), 100.9 (200/333)
Shuttle AV40R = 101.25Mhz
2themax EP-4B2A = 101.0Mhz
ABIT TH7-II RAID = 100.00Mhz
DFI NB70-SC = 102.0Mhz
