ABIT GF4 Ti4200 OTES Review (2)
Overclocker 23 Sep 2002

Benchmarking

We conduct the a number of tests on the setup with the following configuration :

Test System:

• Intel Pentium 4 2.4B
• MSI 845PE i845PE mainboard running DDR333 Async mode CAS 2, 2-2-5
• ABIT Siluro GF4 Ti4200 OTES 64MB with Detonator 40.41
• Maxtor D740X-6L ATA133 7200RPM
• AOPEN 40X CDROM
• Corsair 512MB XMS3200 DDR400 module
• Channelwell 375W AMD Approved PSU

CodeCreatures Benchmark Pro

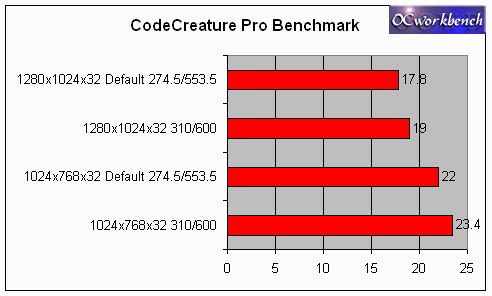

As we know, CodeCreatures Benchmark Pro is a very GPU intensive application. In order to ensure stability even at overclocked environments, we ran the benchmark at both 1280x1024x32 and 1024x768x32 resolution. Below is a comparison of the framerates obtained using the various core/mem and resolutions.

At 1280x1024x32, a 6.7% increase over standard core/mem

At 1024x768x32, a 6.36% increase over standard core/mem

Next
