ABIT AT7 Max2 KT400 Review (3)
Overclocker 30 Sept 2002

Benchmarking

Memory Benchmarks

SiSoft Sandra 2002

The infamous SiSoft Sandra 2002 is used to test out the memory benchmarks. All the systems are tweak to it's maximum possible settings of CAS 2, 2-2-5.

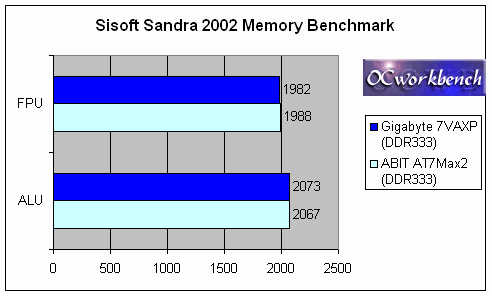

The chart below compares the memory benchmark scores when we run the boards at various CPU/Memory Freq Ratio at DDR333 at CAS 2, 2-2-5 as indicated in the gallery.

ABIT's AT7 Max2 FSB registers a value of 133.39Mhz on WCPUID. Most manufacturers will "overclock" it to 134.00 so that the benchmarks will look better.

From the results, it can be seen that both KT400 boards performs almost identical in memory performance as both are tweak to the maximum possible settings within BIOS.
